Load cells are essential components in various industries, serving as the backbone of weight measurement and force sensing applications. They are widely used in scales, industrial automation, and even in medical devices. Understanding what a load cell is made of can provide insights into its functionality, durability, and application versatility. This article will explore the materials, components, and construction of load cells, along with their working principles and applications.
A load cell is a type of transducer that converts a force or weight into an electrical signal. This signal can then be measured and standardized, making load cells crucial for accurate weight measurement in various applications. Load cells can measure different types of forces, including tension, compression, and shear, depending on their design and application.
1. Strain Gauge Load Cells: These are the most common type of load cells. They use strain gauges to measure the deformation of a material when a load is applied. The change in resistance of the strain gauges is converted into an electrical signal.
2. Hydraulic Load Cells: These load cells use hydraulic fluid to measure force. When a load is applied, it compresses the fluid, and the pressure change is measured to determine the weight.
3. Pneumatic Load Cells: Similar to hydraulic load cells, pneumatic load cells use air pressure to measure force. They are often used in applications where electrical signals may pose a risk.
4. Load Pins: These are specialized load cells that are integrated into a pin or bolt. They are used in applications where space is limited, and they can measure tension or compression.
The materials used in the construction of load cells are critical to their performance and durability. Here are the primary materials involved:

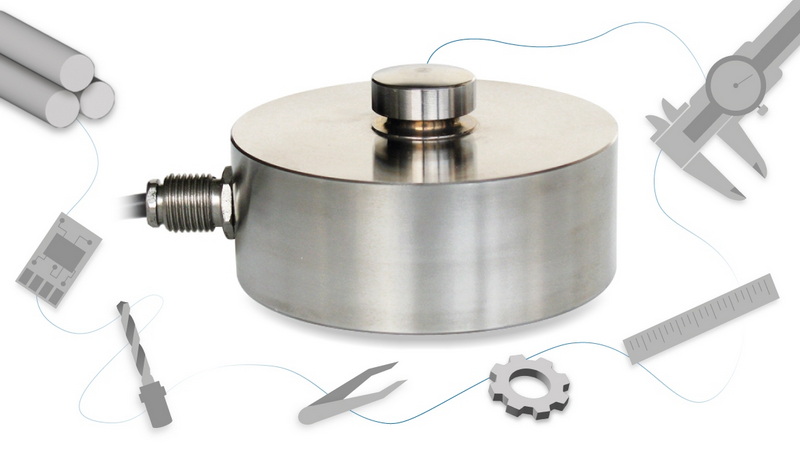

Stainless steel is the most commonly used material for load cells, particularly in industrial applications. It offers excellent strength, corrosion resistance, and durability. The most frequently used grade is 17-4 PH stainless steel, known for its high strength and hardness. This material is ideal for load cells that need to withstand harsh environments, such as those found in food processing or chemical industries.

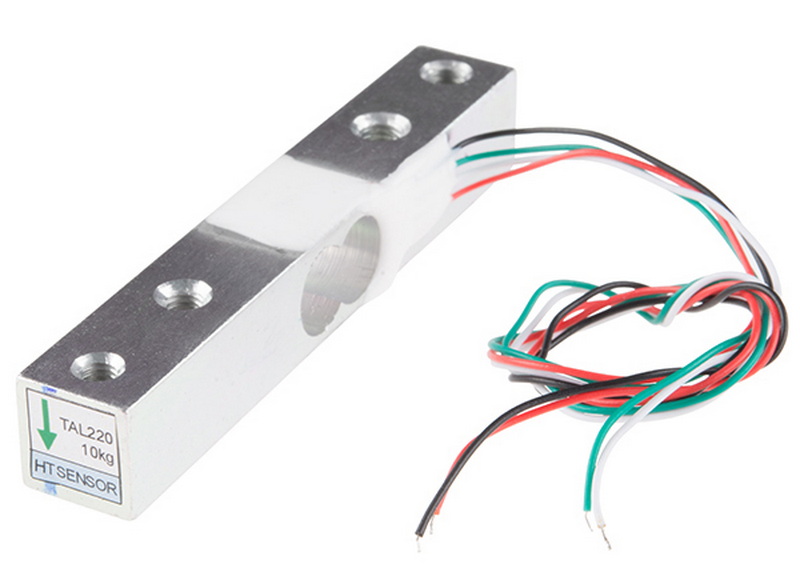

Aluminum is another popular material for load cells, especially in applications where weight is a concern. Aluminum load cells are lighter than their stainless steel counterparts, making them suitable for portable scales and applications where weight reduction is essential. However, aluminum is generally less durable than stainless steel and may not be suitable for all environments.
Strain gauges are critical components of strain gauge load cells. They are typically made from a thin wire or foil arranged in a grid pattern. When the load cell is deformed, the strain gauges also deform, causing a change in their electrical resistance. This change is measured and converted into a weight reading. Strain gauges can be made from various materials, including metal and semiconductor materials, each offering different sensitivity and performance characteristics.
Load cells often use potting materials to protect internal components from moisture, dust, and other environmental factors. These materials can include epoxy resins or silicone compounds, which provide a protective barrier while allowing for the necessary electrical connections.

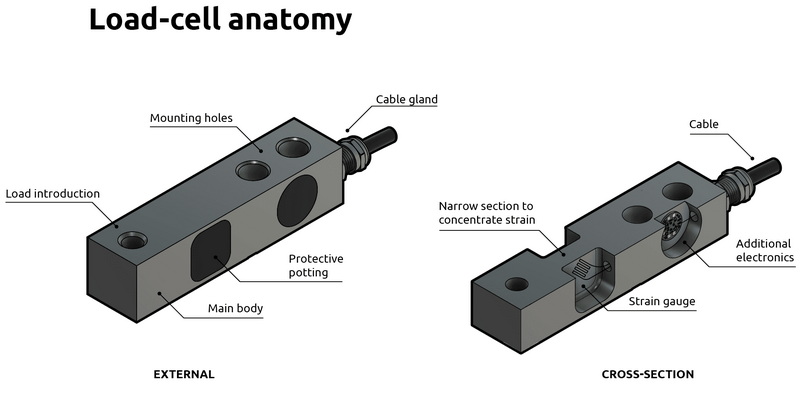

The construction of a load cell involves several steps, from material selection to assembly. Here's a breakdown of the typical construction process:
The first step in constructing a load cell is preparing the materials. Stainless steel or aluminum bars are cut to the required dimensions. For strain gauge load cells, the elastic element is often machined into a specific shape to optimize its performance under load.
Once the elastic element is prepared, strain gauges are applied to the surface. This process involves cleaning the surface, applying adhesive, and carefully positioning the strain gauges. The gauges must be aligned precisely to ensure accurate measurements.
After the strain gauges are attached, wiring is added to connect the gauges to the load cell's electronics. This wiring is crucial for transmitting the electrical signals generated by the strain gauges to the measurement system.
To protect the internal components, the load cell is often potted with a protective material. This step is essential for load cells used in harsh environments, as it prevents moisture and contaminants from affecting performance.
Once assembled, the load cell must be calibrated to ensure accurate measurements. Calibration involves applying known weights and adjusting the output signal to match the expected values. This process is critical for maintaining the accuracy and reliability of the load cell.
Load cells operate on the principle of converting mechanical force into an electrical signal. Here's a simplified explanation of how they work:
1. Force Application: When a load is applied to the load cell, it causes the elastic element to deform. This deformation is proportional to the amount of force applied.
2. Strain Gauge Response: The strain gauges attached to the elastic element also deform. This deformation changes the electrical resistance of the strain gauges.
3. Signal Conversion: The change in resistance is measured and converted into an electrical signal. This signal is then processed to determine the weight or force applied.
4. Output: The processed signal is output as a readable value, which can be displayed on a digital scale or used in automated systems.
Load cells are used in a wide range of applications across various industries. Some common applications include:
- Weighing Scales: Load cells are the primary components in industrial and commercial weighing scales, providing accurate weight measurements.
- Material Testing: In laboratories, load cells are used to test the strength and durability of materials by measuring the force applied during testing.
- Automated Systems: Load cells are integrated into automated systems for monitoring and controlling processes, such as filling containers with precise amounts of material.
- Medical Devices: Load cells are used in medical applications, such as patient weighing scales and force measurement in rehabilitation equipment.
- Aerospace and Automotive Testing: Load cells are employed in testing the structural integrity of components in aerospace and automotive industries.
Load cells offer several advantages that make them the preferred choice for weight measurement and force sensing:
- High Accuracy: Load cells provide precise measurements, making them suitable for applications requiring high accuracy.
- Durability: Constructed from robust materials, load cells can withstand harsh environments and heavy usage.
- Versatility: Load cells can be used in various applications, from industrial scales to medical devices, making them highly versatile.
- Ease of Integration: Load cells can be easily integrated into existing systems, allowing for seamless upgrades to measurement capabilities.
- Real-time Monitoring: Load cells provide real-time data, enabling immediate feedback and control in automated systems.
As technology continues to advance, load cells are evolving to meet the demands of modern applications. Some future trends include:
- Smart Load Cells: The integration of IoT technology into load cells allows for remote monitoring and data analysis, enhancing operational efficiency.
- Miniaturization: As devices become smaller, load cells are being designed to fit into compact spaces without sacrificing performance.
- Enhanced Materials: Research into new materials may lead to load cells that are even more durable and sensitive, expanding their range of applications.
- Wireless Technology: Wireless load cells are becoming more common, eliminating the need for cumbersome wiring and allowing for greater flexibility in installation.
Load cells are vital components in modern technology, enabling accurate weight measurement and force sensing across various applications. Understanding what load cells are made of, including the materials and construction processes, provides valuable insights into their functionality and reliability. As technology advances, load cells continue to evolve, incorporating new materials and designs to meet the demands of diverse industries.
The lifespan of a load cell can vary based on its application and environmental conditions. Generally, a well-maintained load cell can last for many years, often exceeding 10 years.
Yes, load cells can be used outdoors, but they must be properly sealed and protected from environmental factors such as moisture and dust.
You can check the calibration of a load cell by applying known weights and comparing the output signal to the expected values. If there is a discrepancy, recalibration may be necessary.
Signs of a failing load cell include erratic readings, a significant change in output without a change in load, and physical damage to the load cell.
Yes, there are load cells specifically designed to operate in high-temperature environments. These load cells use materials and components that can withstand extreme temperatures without compromising accuracy.
