What Is Excitation Signal of A Load Cell?

Views: 222     Author: Tina     Publish Time: 2024-11-22      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Introduction

Understanding Load Cells

>> How Load Cells Work

>> Types of Load Cells

What is an Excitation Signal?

>> Characteristics of Excitation Signals

>> Importance of Voltage Levels

Importance of Excitation Voltage

>> Effects on Sensitivity

>> Impact on Measurement Range

>> Example Calculation

Types of Load Cells and Their Excitation Requirements

>> Strain Gauge Load Cells

>> Capacitive Load Cells

>> Pneumatic and Hydraulic Load Cells

>> Choosing the Right Load Cell

Wiring and Connections

>> Typical Wiring Configuration

>> Common Wiring Issues

Calibration and Testing

>> Steps for Calibration

>> Importance of Regular Calibration

Common Issues with Excitation Signals

>> Voltage Fluctuations

>> Noise Interference

>> Overloading Concerns

Advanced Concepts Related to Load Cell Excitation Signals

>> Digital Load Cells

>> Wireless Load Cells

Conclusion

Related Questions

>> 1. What happens if the excitation voltage is too low?

>> 2. Can I use AC instead of DC for exciting a load cell?

>> 3. How often should I calibrate my load cell?

>> 4. What should I do if my load cell gives erratic readings?

>> 5. Is there a maximum allowable excitation voltage?

Introduction

Load cells are essential components in various measurement systems, converting mechanical force into an electrical signal. Understanding the excitation signal of a load cell is crucial for ensuring accurate measurements in applications ranging from industrial scales to precision testing machines. This article delves into the concept of excitation signals, their significance, and how they affect the performance of load cells.

Understanding Load Cells

A load cell is a type of transducer that converts force into an electrical signal. The most common type is the strain gauge load cell, which operates on the principle of resistance change in strain gauges when subjected to mechanical stress.

How Load Cells Work

When force is applied to a load cell, it deforms slightly. This deformation causes a change in resistance in the strain gauges attached to it, resulting in a change in voltage output. The relationship between the applied force and the output signal is typically linear, allowing for precise measurements.

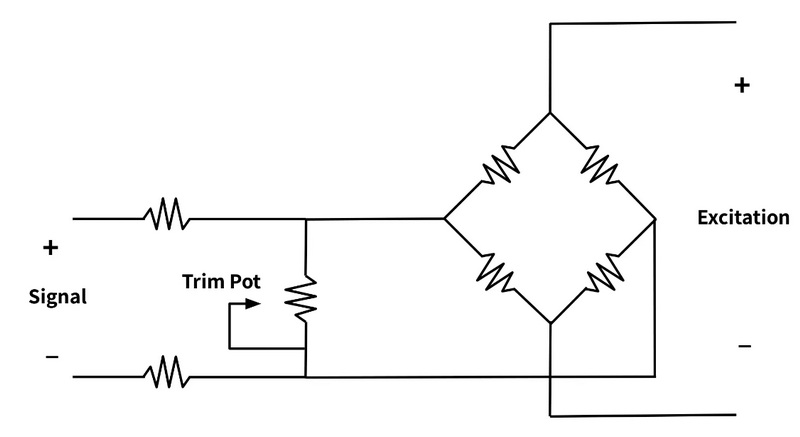

excitation signal of a load cell_2

Types of Load Cells

There are several types of load cells, each suited for specific applications:

- Strain Gauge Load Cells: The most common type, using strain gauges to measure deformation.

- Capacitive Load Cells: These measure changes in capacitance caused by applied force.

- Pneumatic Load Cells: These use air pressure to measure weight and are often used in environments where electronic devices may fail.

- Hydraulic Load Cells: These operate on the principle of fluid pressure and are suitable for heavy loads.

Understanding these types helps in selecting the right load cell for specific applications.

What is an Excitation Signal?

The excitation signal refers to the electrical voltage supplied to the load cell to enable it to function properly. This voltage is necessary for powering the internal circuitry and generating an output signal that corresponds to the applied force.

Characteristics of Excitation Signals

- Type: The excitation voltage can be either direct current (DC) or alternating current (AC), with DC being more common in load cell applications.

- Magnitude: Typical excitation voltages range from 5V to 15V, depending on the load cell specifications.

- Stability: A stable excitation voltage is crucial for accurate measurements. Fluctuations can lead to errors in the output signal.

Importance of Voltage Levels

The level of excitation voltage significantly impacts the performance characteristics of a load cell. For example, a higher excitation voltage can enhance sensitivity but may also increase noise levels if not managed properly. Therefore, balancing these factors is essential for optimal performance.

Importance of Excitation Voltage

The excitation voltage plays a vital role in determining the sensitivity and accuracy of a load cell's measurements.

Effects on Sensitivity

Higher excitation voltages generally increase the sensitivity of a load cell, allowing it to detect smaller changes in force. For instance, a load cell with a rated output of 2 mV/V will produce an output of 20 mV when excited with 10V at full capacity. This increased sensitivity is particularly beneficial in applications requiring high precision, such as laboratory testing or quality control processes.

Impact on Measurement Range

The excitation voltage also influences the measurement range of a load cell. A higher excitation can extend this range, enabling the load cell to measure larger forces without saturation. However, care must be taken not to exceed the maximum rated capacity of the load cell, as this can lead to permanent damage.

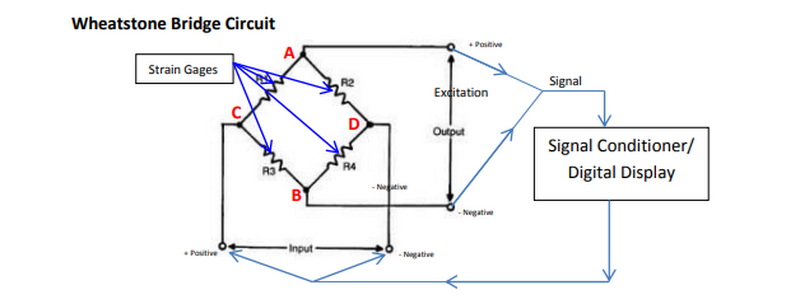

excitation signal of a load cell_3

Example Calculation

To illustrate how excitation voltage affects output:

If a load cell has a capacity of 1000 kg and an output sensitivity of 2 mV/V at an excitation voltage of 10V:

$$

\text{Output Signal} = \text{Excitation Voltage} \times \text{Sensitivity} = 10 \, \text{V} \times 2 \, \text{mV/V} = 20 \, \text{mV}

$$

This means that at full capacity (1000 kg), the load cell will produce an output signal of 20 mV.

Types of Load Cells and Their Excitation Requirements

Different types of load cells have varying requirements for excitation signals:

Strain Gauge Load Cells

These are the most common types and typically require an excitation voltage between 5V and 15V DC. They are widely used due to their accuracy and reliability.

Capacitive Load Cells

Capacitive load cells often require lower excitation voltages but can offer higher sensitivity compared to strain gauge types. They are suitable for applications where minimal deformation is desired.

Pneumatic and Hydraulic Load Cells

These types operate differently and do not rely on electrical excitation; instead, they use fluid pressure to measure force. Pneumatic cells are often used in weighing systems where electronic interference might be an issue.

Choosing the Right Load Cell

When selecting a load cell for specific applications, consider factors such as:

- Load Capacity: Ensure that the chosen load cell can handle the maximum expected weight.

- Environmental Conditions: Some load cells are better suited for harsh environments than others.

- Required Sensitivity: Determine how sensitive your application needs to be based on measurement requirements.

Wiring and Connections

Proper wiring is essential for ensuring that the excitation voltage reaches the load cell without interference or loss.

Typical Wiring Configuration

Most strain gauge load cells utilize a four-wire configuration:

- Excitation Positive (E+)

- Excitation Negative (E-)

- Signal Positive (S+)

- Signal Negative (S-)

This configuration minimizes errors caused by resistance in the wires connecting the load cell to its power source.

Common Wiring Issues

Improper wiring can lead to several issues:

- Voltage Drops: Long wire runs can cause significant voltage drops if not sized correctly.

- Noise Interference: Unshielded cables may pick up electromagnetic interference from nearby equipment.

- Incorrect Connections: Miswiring can result in reversed signals or even damage to the load cell.

Calibration and Testing

Calibration is crucial for ensuring that a load cell provides accurate readings under various conditions.

Steps for Calibration

1. Apply Known Weights: Use calibrated weights to apply known forces to the load cell.

2. Record Output Signals: Measure the output signals corresponding to each applied weight.

3. Adjust Settings: If necessary, adjust calibration settings based on discrepancies between expected and measured values.

4. Re-test: Repeat until consistent results are achieved.

Importance of Regular Calibration

Regular calibration ensures that any drift in measurement accuracy over time is corrected. Factors such as temperature changes, mechanical wear, or even environmental conditions can affect performance.

Common Issues with Excitation Signals

Several issues can arise related to excitation signals that may affect measurement accuracy:

Voltage Fluctuations

Fluctuations in excitation voltage can lead to inconsistent output signals. Using regulated power supplies can mitigate this issue and ensure stable operation under varying conditions.

Noise Interference

Electrical noise can interfere with the output signal from a load cell. Shielded cables and proper grounding techniques can help reduce noise levels significantly.

Overloading Concerns

Exceeding specified limits on either force or excitation voltage can result in permanent damage to both strain gauges and internal circuitry within the load cell itself.

Advanced Concepts Related to Load Cell Excitation Signals

As technology evolves, so do methods for improving performance related to excitation signals:

Digital Load Cells

Digital load cells incorporate built-in microprocessors that handle signal processing internally, providing enhanced accuracy and reducing susceptibility to noise interference compared with analog systems.

Wireless Load Cells

Wireless technology allows for remote monitoring without physical connections; however, these systems still require appropriate power management strategies for their internal excitations.

Conclusion

Understanding the excitation signal of a load cell is fundamental for achieving accurate measurements across various applications. By providing stable and appropriate excitation voltages while considering factors like wiring configurations and calibration practices, users can ensure optimal performance from their load cells—yielding reliable data crucial for analysis and decision-making processes across industries ranging from manufacturing through scientific research settings alike.

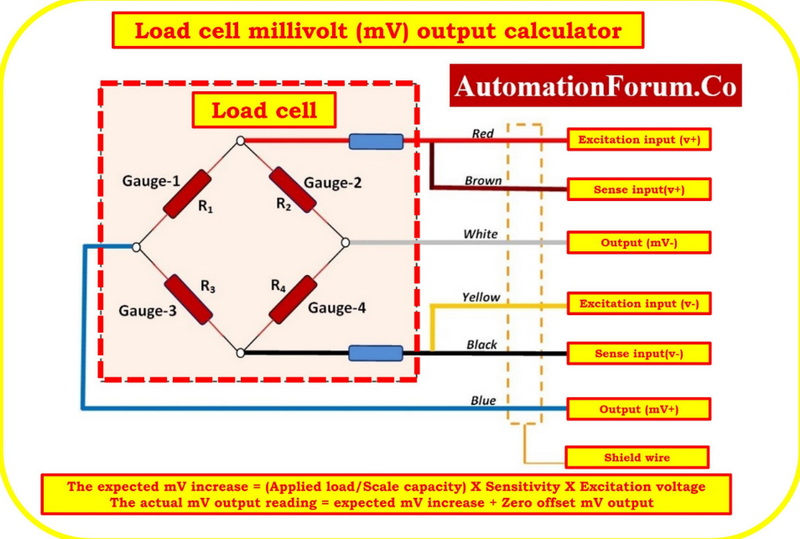

a six wire load cell used for_1

Related Questions

1. What happens if the excitation voltage is too low?

If the excitation voltage is too low, it may result in insufficient output signals from the load cell leading ultimately towards inaccurate measurements overall due largely because there isn't enough energy supplied necessary for proper functioning within its circuitry components themselves!

2. Can I use AC instead of DC for exciting a load cell?

While some applications may allow AC usage; however most commonly found designs utilize DC due primarily because it provides greater stability & reliability throughout operational periods compared against alternating currents which fluctuate constantly over time!

3. How often should I calibrate my load cell?

Calibration frequency depends significantly upon usage conditions; however generally speaking it's recommended at least once every year or after significant changes occur within environmental conditions/loads experienced during operation cycles!

4. What should I do if my load cell gives erratic readings?

Start by checking all connections thoroughly ensuring everything remains secure; next ensure stable supply voltages exist without fluctuations occurring during measurement periods—if problems persist consider recalibrating/replacing faulty components as needed!

5. Is there a maximum allowable excitation voltage?

Yes indeed! Exceeding maximum specified limits could potentially damage internal parts so always refer back directly towards manufacturer specifications before applying any voltages exceeding recommended safe ranges!
