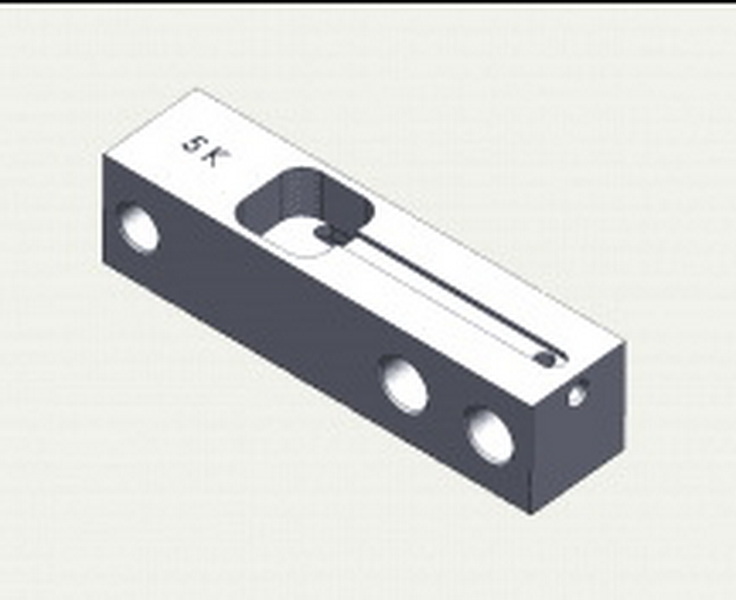

Load cells are transducers that convert force or weight into an electrical signal. They are widely used in scales and weighing systems across various industries, including manufacturing, food processing, and pharmaceuticals. The basic principle involves the deformation of a material under load, which alters its electrical resistance. This change is measured and converted into a weight reading.
Several factors can contribute to load cell drift, including:
- Mechanical Damage: Physical damage to the load cell can result from excessive strain or mishandling, leading to permanent deformation and inaccurate readings.
- Temperature Fluctuations: Rapid changes in temperature can affect the materials used in load cells, causing them to expand or contract. This thermal expansion can lead to drift as the load cell struggles to maintain consistent readings.
- Moisture Ingress: Exposure to moisture can damage the internal components of a load cell. Water can cause corrosion and short-circuiting, leading to erratic behavior.
- Static Electricity: A lack of humidity can lead to static build-up, which interferes with the electronic components of the load cell, causing fluctuations in readings.

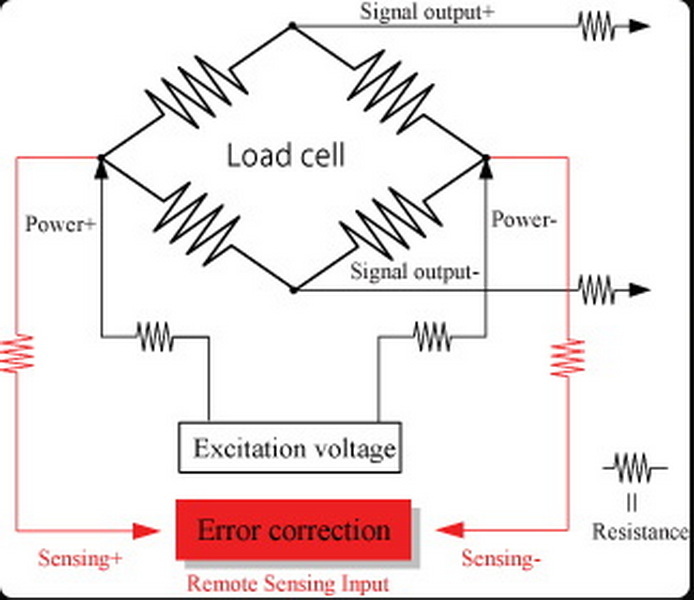

- Electrical Noise: Interference from nearby electrical devices can introduce noise into the signal output of a load cell, resulting in drift.
Identifying load cell drift involves a systematic approach:
1. Return-To-Zero Test: This test checks whether the load cell returns to zero when no weight is applied. If it does not, drift is likely present.

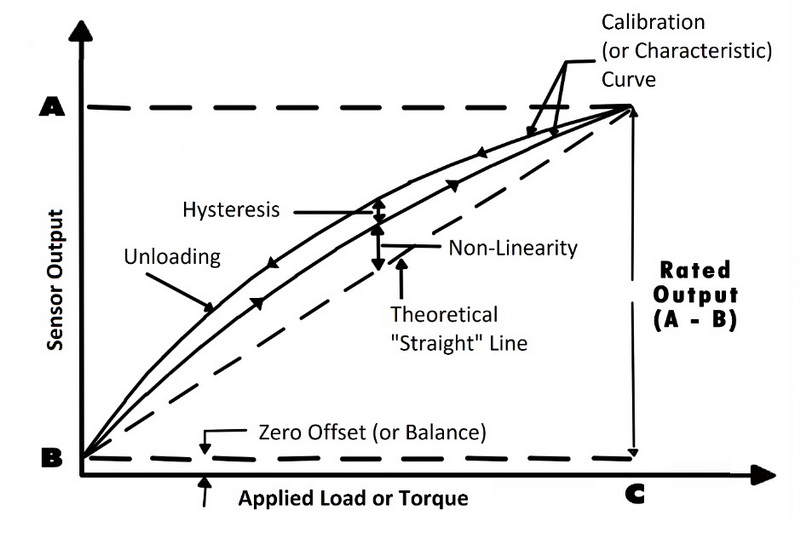

2. Calibration Checks: Regular calibration against known weights helps identify discrepancies in measurements due to drift.
3. Environmental Monitoring: Keeping track of temperature and humidity levels in the area where the load cells operate can help correlate environmental changes with drift occurrences.
4. Visual Inspection: Regularly inspecting load cells for signs of physical damage or moisture ingress is crucial.
To mitigate or eliminate load cell drift, several strategies can be employed:
- Regular Calibration: Implementing a routine calibration schedule ensures that any drift is accounted for and corrected.
- Environmental Control: Maintaining stable temperature and humidity levels in the area where the load cells are used can reduce the risk of drift caused by environmental factors.
- Moisture Protection: Using waterproof enclosures or coatings on load cells can prevent moisture damage.
- Static Control Measures: Installing ionizers or grounding systems can help dissipate static electricity that may affect readings.
- Mechanical Adjustments: Ensuring proper mounting and alignment of load cells minimizes mechanical strain that could lead to drift.
Accurate measurements are critical across various industries. Inaccuracies due to load cell drift can lead to significant financial losses, safety hazards, and compromised product quality. For instance:
- In manufacturing, inaccurate weight measurements can result in improper material mixtures.
- In pharmaceuticals, incorrect dosages due to faulty weight readings could have serious health implications.
Load cell drift poses a significant challenge in achieving accurate measurements across numerous applications. By understanding its causes and implementing effective solutions such as regular calibration, environmental control, and moisture protection, organizations can enhance measurement reliability and ensure optimal performance of their weighing systems.
Common symptoms include inconsistent weight readings, failure to return to zero after unloading, and fluctuations during repeated measurements.
Preventive measures include regular calibration, maintaining stable environmental conditions, protecting against moisture ingress, and ensuring proper grounding for static electricity control.
A Return-To-Zero test checks if a load cell returns to its baseline reading (zero) after removing all weight. It helps identify potential drift issues.
Load cells should ideally be calibrated at least once a year or more frequently if they are subjected to harsh conditions or heavy use.
Yes, rapid temperature changes can cause materials within the load cell to expand or contract, leading to measurement inaccuracies known as drift.
