FA641
FIBOS

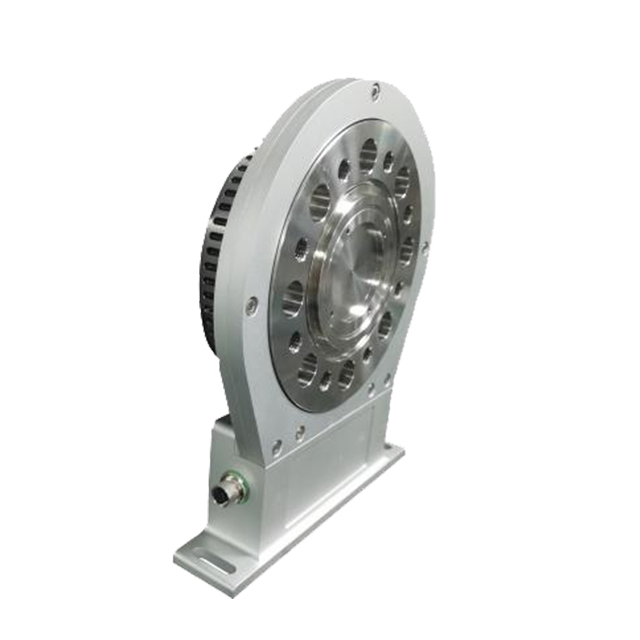

Disc-type dynamic torque sensor Product Description |
Minimum installation length, non-contact design
Small installation angle, high speed up to 30,000 rpm
Integrated double-flexible disc coupling
Bearing-free, eliminating the effects of bearing friction

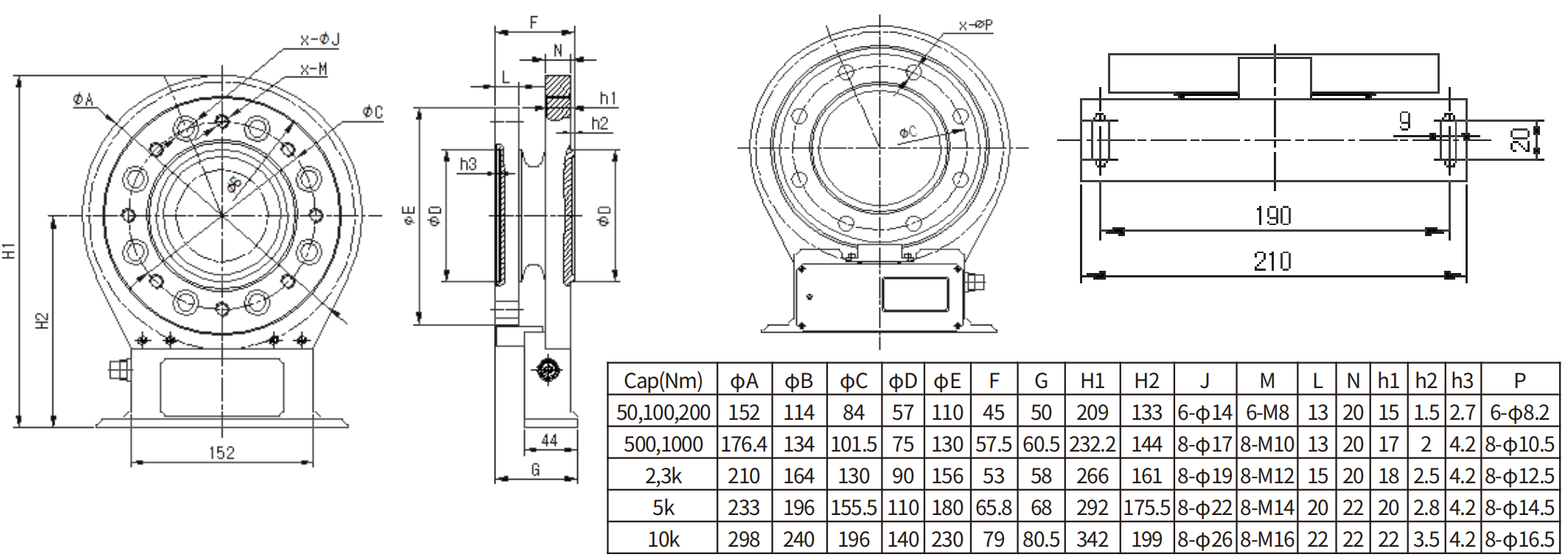

Disc-type dynamic torque sensor Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |
Disc-type dynamic torque sensor Specifications |
Specifications | Technique |
| Capacity | 0-5000Nm |
| Accuracy | ≤0.2%F.S. |
| Repeatability | ±0.02% |
| Tamp.efliect on zero | ±0.02%FS |
| Temp.effect on sensitivity | ±0.02%FS |
| Compensated temp.range | -10~60°C |
| working temp.range | -20~75°C |
| output | 5±5kHz,4-20mA,±5VDC,±10VDC,RS485, RS232,CAN |
| Supply voltage | 12-24VDC |
| Supply current | ＜100mA |
| Connection | 8-Pin |
| Overload protection | 200%FS |
| Material | 17-4PH stainless steel, aluminium housing |
| Option | |
| Installation | Axial deviation ±0.2 mm, angular error 0.4° |
| Speed | Maximum speed: 30,000 rpm, 60 pulses, 4–20 mA, 5 V/TTL, ±5 V DC, ±10 V DC, RS485, RS232, CAN |

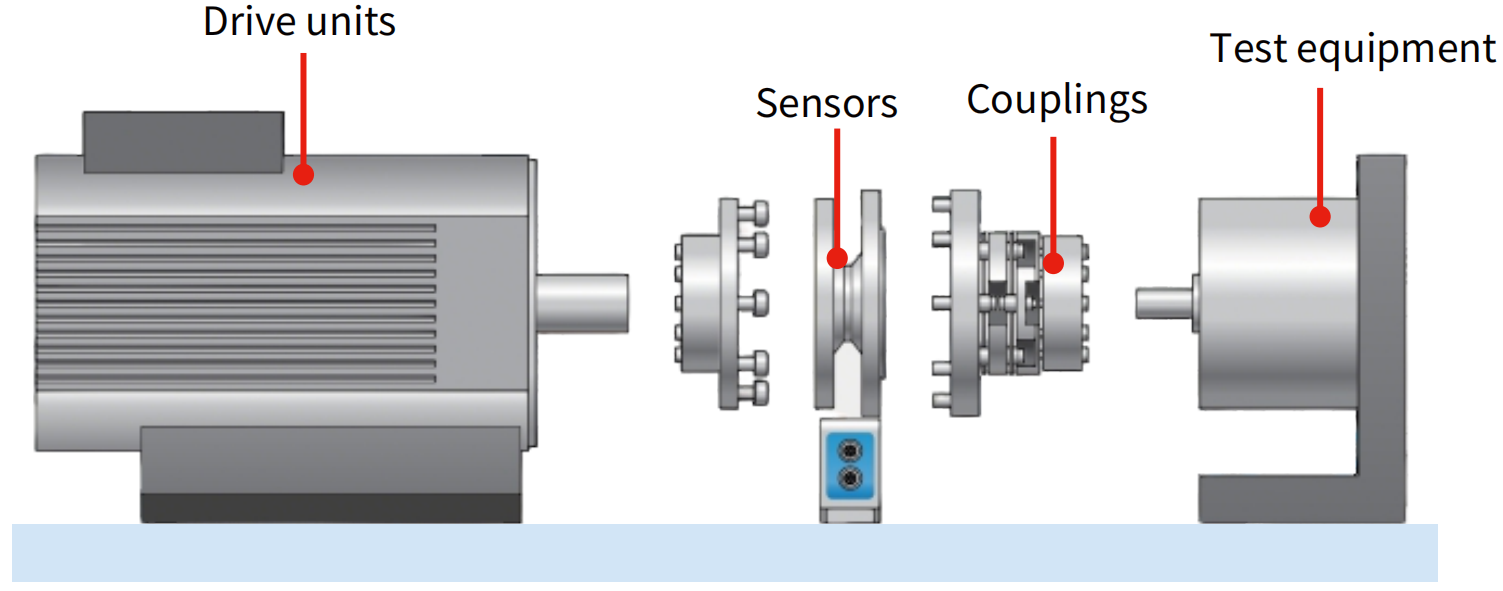

Disc-type dynamic torque sensor Installation |
 |
| Please fit a bearing between the coupling and the other components to support the housing. |
Sensor Styling Suggestions |
 |
Force sensor manufacturing process |
Sensor Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Customer case studies for the Torque series |
Frequently Asked Questions about Force Sensors |
A: Accuracy ≤0.2%F.S, repeatability ≤0.02%FS. Standard ranges: 0-50Nm to 0-5000Nm, custom ranges available.
A: Analog (5±5kHz, 4-20mA, ±5/10VDC) and digital (RS485, RS232, CAN) outputs for flexible system integration.
A: Flange-mounted design, installed between drive and test equipment via coupling. Axial deviation ≤0.2mm, angular deviation ≤0.4° required.
A: 12-24VDC, supply current <100mA, compatible with standard industrial power systems
A: Motor/powertrain testing, robot joint monitoring, aerospace component validation, high-speed gearbox/turbine efficiency testing, etc.
A: Yes, optional integrated speed measurement with multiple output signals available.
