FA603
FIBOS
5~500N.m
±0.1%F.S
See the detailed dimension drawing
-
-
-
Shell: Aluminium;Axis: 17-4PH

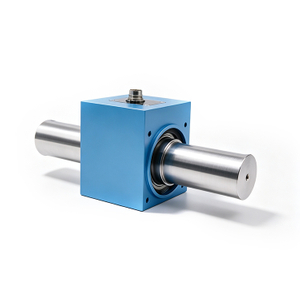

Rotary Torque Sensor Dynamic Measurement 50-500Nm FA603 Product Description |
The FIBOS FA603 is a dynamic rotary torque sensor designed for precise real-time torque measurement in rotating systems. With a capacity range from 5 Nm to 500 Nm, it supports multiple outputs including frequency, analog, and RS485/RS232 communication. Its non-contact design ensures stable performance with high accuracy and fast response. The sensor can also measure speed (RPM) and power simultaneously. Ideal for motor testing, automation systems, and industrial torque monitoring applications.
Non-ContactDynamic Torque Sensor Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |
Load application methods for dynamic torque sensors | Definition of Dynamic Torque Sensor Selection |
 |  |
Non-ContactDynamic Torque Sensor Specifications |
| Rated Range | Technique |
Rated torque | 50~500N.m |
Speed Range | ≤8000rpm |
| Torque Signal | RS485/±10V/±5V/4-20mA/0-10V/0-5V/5-15KHz |
| Speed Signal | RS485/60pulse |
| Accuracy | ±0.1%F.S |
| Overload Capacity | 150% |
| Frequency Response | 1ms |
| Operating Temperature | -20~75°C |
| Tamp.efliect on zero | 0.15%F.S./10°C |
| Temp.effect on sensitivity | 0.15%F.S./10°C |
| Power Supply | 24VDC±15% |
| Material | Shell: Aluminium;Axis: 17-4PH |
| Cable Size | φ5x30m |
| Red:24V+; Black:24V-; Green:RS485 (B); Orange: RS485 (A);Brown: Torque frequency output； White: Speed output； Blue:Analog voltaget；Yellow: Signal common | |
Non-ContactDynamic Torque Sensor Installation |
 |
| Please fit a bearing between the coupling and the other components to support the housing. |
Sensor Styling Suggestions |
 |
Force sensor manufacturing process |
Sensor Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Customer case studies for the Torque series |
Frequently Asked Questions about Force Sensors |
A: The FA603 dynamic torque sensor is widely used in motor testing, automotive drivetrain analysis, fan and pump testing, automated production lines, and research applications requiring real-time torque monitoring.
A:The FA603 uses non-contact signal transmission technology, eliminating wear associated with slip rings. Advantages include:
No mechanical contact, longer lifespan
Stable signal with low noise
Suitable for high-speed rotation applications
A:The FA603 measures dynamic torque and can also output rotational speed (RPM). Some models support power calculation, making it suitable for comprehensive performance testing.
A: Yes, thanks to its non-contact design, the FA603 is ideal for high-speed rotating equipment, avoiding slip ring wear and signal instability.
A:Compared to slip ring sensors, the non-contact FA603 offers:
No wear and lower maintenance
More stable signal transmission
Better performance in continuous operation
A: Yes, FIBOS offers customization options including torque range, shaft size, output signals (analog or digital), and interface types to meet specific requirements.
