FA607C
FIBOS
200,300,600g;1,1.2,1.5,3kg
±0.02%F.S
See the detailed dimension drawing
-
-
-
Aluminum alloy

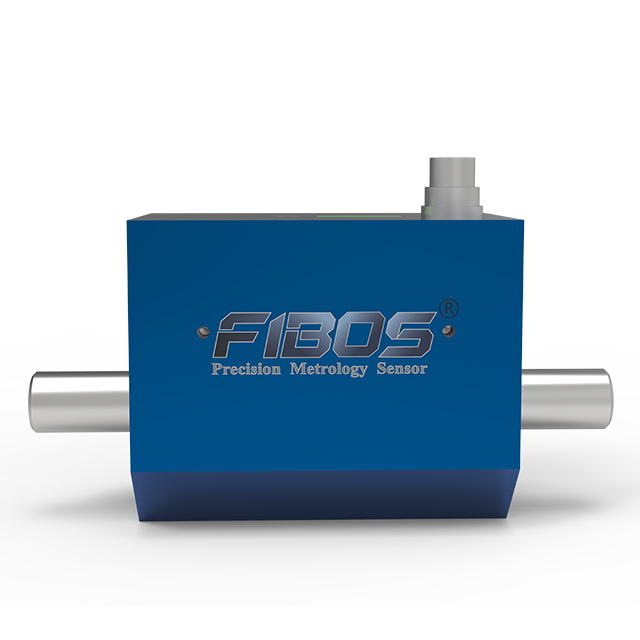

Micro Motor Torque Measurement Sensor FA607C Product Description |
The FIBOS FA607C is a high-precision dynamic rotary torque sensor designed for accurate torque measurement in rotating systems. With a capacity range from 200,300,600g;1,1.2,1.5,3kg, it delivers stable output with excellent linearity, low hysteresis, and high repeatability. Its non-contact design ensures reliable performance, strong anti-interference capability, and long service life. The compact structure allows easy installation in various setups. Ideal for motor testing, power monitoring, and industrial automation applications.

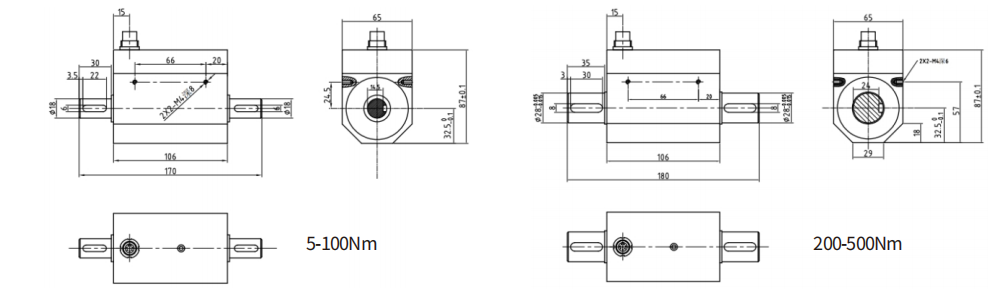

Micro Motor Torque Measurement Sensor FA607C Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |
Load application methods for dynamic torque sensors | Definition of Dynamic Torque Sensor Selection |
 |
Micro Motor Torque Measurement Sensor FA607C Specifications |
| Rated Range | Technique |
Rated torque | 200,300,600g;1,1.2,1.5,3kg |
| Accuracy | ±0.02%F.S |
| Overload Capacity | 150% |
| Frequency Response | 1ms |
| Operating Temperature | -20~60°C |
| Temp.effect on sensitivity | 0.15%F.S./10°C |
| Power Supply | 24VDC±15% |
| Material | Aluminium Alloy |
| Cable Size | φ3x0.25m |
| Red:24V+; Black:24V-; Green:RS485 (B); Orange: RS485 (A);Brown: Torque frequency output； White: Speed output； Blue:Analog voltaget；Yellow: Signal common | |
Micro Motor Torque Measurement Sensor FA607C Installation |
 |
| Please fit a bearing between the coupling and the other components to support the housing. |
Sensor Styling Suggestions |
 |
Force sensor manufacturing process |
Sensor Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Customer case studies for the Torque series |
Frequently Asked Questions about Force Sensors |
A: The FA607C dynamic torque sensor is widely used in motor testing, automotive drivetrain analysis, fan and pump testing, automated production lines, and research applications requiring real-time torque monitoring.
A:The FA607C uses non-contact signal transmission technology, eliminating wear associated with slip rings. Advantages include:
No mechanical contact, longer lifespan
Stable signal with low noise
Suitable for high-speed rotation applications
A:The FA607C measures dynamic torque and can also output rotational speed (RPM). Some models support power calculation, making it suitable for comprehensive performance testing.
A: Yes, thanks to its non-contact design, the FA607C is ideal for rotating equipment, avoiding slip ring wear and signal instability.
A:Compared to slip ring sensors, the non-contact FA607C offers:
No wear and lower maintenance
More stable signal transmission
Better performance in continuous operation
A: Yes, FIBOS offers customization options including torque range, shaft size, output signals (analog or digital), and interface types to meet specific requirements.
