Load cells are crucial components in various industries, from manufacturing and logistics to agriculture and healthcare. These precision instruments are responsible for converting force into measurable electrical signals, enabling accurate weight measurements in countless applications. Among the different types of load cells, the 4 wire load cell is one of the most common and versatile. In this comprehensive guide, we'll explore the intricacies of 4 wire load cells, focusing on how to check, troubleshoot, and maintain these essential devices for optimal performance.
Before diving into the checking and troubleshooting processes, it's essential to understand the fundamentals of 4 wire load cells.

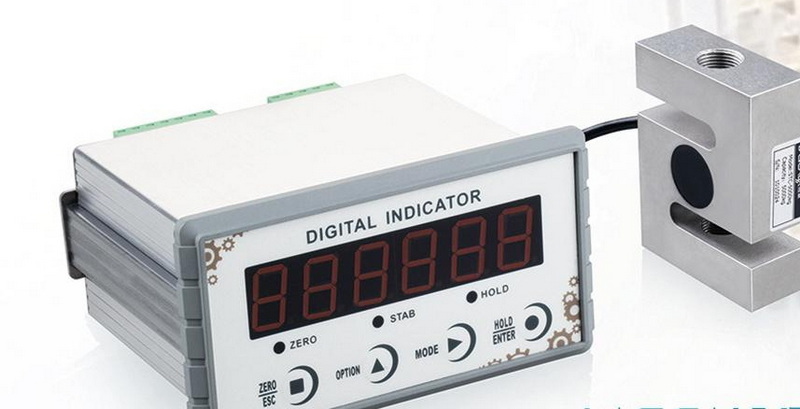

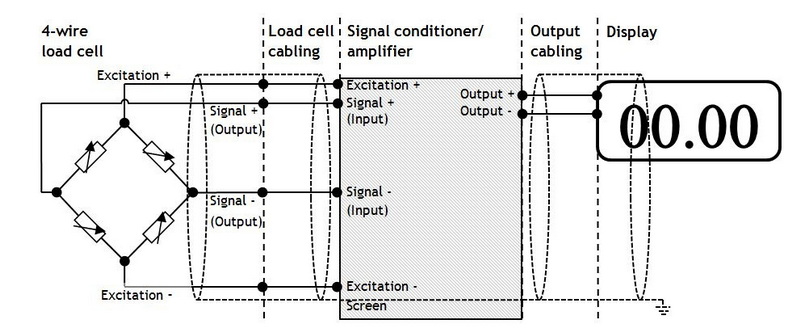

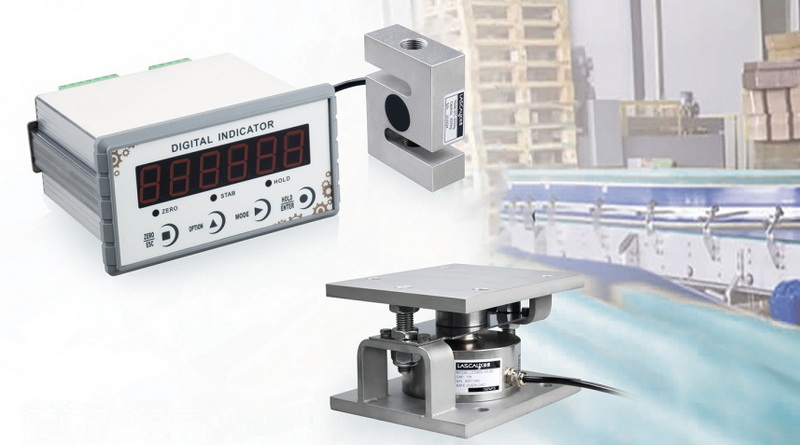

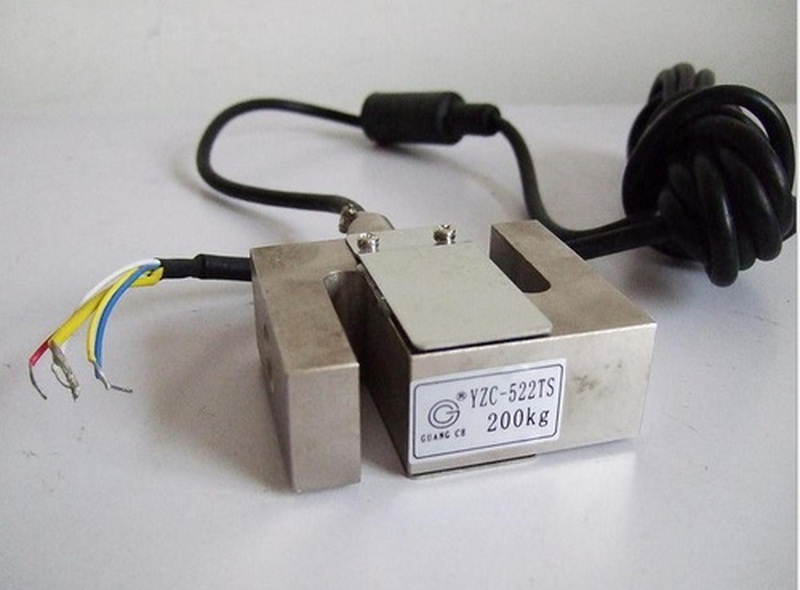

A 4 wire load cell is a force sensor that uses four wires to connect to measurement instruments. These wires are typically color-coded and serve specific functions:
1. Red: Positive excitation (E+)
2. Black: Negative excitation (E-)
3. Green: Positive signal output (S+)
4. White: Negative signal output (S-)
4 wire load cells operate on the principle of strain gauge technology. When a force is applied to the load cell, it causes a minute deformation in the cell's structure. This deformation is detected by strain gauges, which change their electrical resistance proportionally to the applied force. The change in resistance is then converted into a measurable voltage output, typically in the millivolt (mV) range.
Proper wiring is crucial for accurate load cell performance. Here's how to check and ensure correct 4 wire load cell wiring:
First, familiarize yourself with the standard color coding:
- Red: E+ (Excitation positive)
- Black: E- (Excitation negative)
- Green: S+ (Signal positive)
- White: S- (Signal negative)
Ensure that each wire is securely connected to the corresponding terminal on your measurement instrument or junction box. Loose connections can lead to erratic readings or signal loss.
Inspect the wires for any signs of damage, such as cuts, frays, or exposed conductors. Damaged wires can cause short circuits or signal interference.
If your load cell uses shielded cable, make sure the shield is properly grounded to minimize electromagnetic interference.
When your 4 wire load cell isn't performing as expected, follow these troubleshooting steps to identify and resolve issues:
Begin with a thorough visual inspection of the load cell and its connections. Look for:
- Physical damage to the load cell body
- Corrosion on terminals or connectors
- Loose or disconnected wires
- Signs of moisture ingress
Use a digital multimeter to measure the resistance between various points on the load cell:
a) Input resistance: Measure between E+ and E-. This should match the manufacturer's specifications, typically around 350Ω or 1000Ω.
b) Output resistance: Measure between S+ and S-. This should be close to the input resistance.
c) Insulation resistance: Measure between any wire and the load cell body. This should show an open circuit or very high resistance (>1000MΩ).
Verify that the excitation voltage supplied to the load cell matches the manufacturer's recommendations. Most 4 wire load cells operate with 5V to 15V DC excitation.
With no load applied, measure the output signal between S+ and S-. This should be very close to 0mV. Apply a known weight and observe the change in output signal. The relationship between applied weight and output signal should be linear.
Measure the zero balance of the load cell by dividing the no-load output signal by the excitation voltage. This value, expressed in mV/V, should be within the manufacturer's specified range, typically ±0.1% of rated output.
Regular calibration is essential for maintaining load cell accuracy. Here's a basic calibration procedure:
With no load applied, adjust your measurement instrument to read zero.
Apply a known calibration weight (ideally at least 75% of the load cell's rated capacity) and adjust the instrument to display the correct weight.
Test the load cell at multiple points across its range to ensure linear response.
Apply and remove the same weight multiple times, checking for consistent readings.
For more comprehensive load cell evaluation, consider these advanced testing methods:
Apply a constant load for an extended period (typically 30 minutes to several hours) and monitor the output for any drift.
Evaluate the load cell's performance across its specified temperature range to quantify temperature-induced errors.
Apply loads at different positions on the load cell to assess its sensitivity to off-center loading.
Carefully apply loads beyond the rated capacity to verify the load cell's overload protection and return to zero characteristics.
To ensure long-term accuracy and reliability of your 4 wire load cells, follow these maintenance best practices:
Keep the load cell and surrounding area clean and free from debris that could interfere with measurements.
Shield load cells from excessive moisture, dust, and corrosive substances. Use appropriate enclosures or protective coatings when necessary.
Avoid shock loading or applying forces beyond the load cell's rated capacity. Use appropriate mounting hardware and follow manufacturer guidelines for installation.
Establish a regular calibration schedule based on usage frequency and environmental conditions. Document all calibration procedures and results.
Use high-quality signal conditioning equipment to amplify and filter the load cell output for improved accuracy and noise rejection.
Here are some common problems you might encounter with 4 wire load cells and how to address them:
Possible causes:
- Loose connections
- Electromagnetic interference
Moisture ingressSolutions:
- Check and tighten all connections
- Improve shielding and grounding
- Ensure proper sealing against moisture
Possible causes:
- Overloading damage
- Improper mounting
Faulty strain gaugesSolutions:
- Replace the load cell if overload damage is suspected
- Verify proper mounting and alignment
- Perform a thorough calibration check
Possible causes:
- Temperature fluctuations
- Creep characteristics
Power supply instabilitySolutions:
- Implement temperature compensation
- Allow sufficient warm-up time
- Use a stable, regulated power supply
Possible causes:
- Residual stress from improper mounting
- Physical damage to the load cell
Extreme temperature changesSolutions:
- Check and correct mounting issues
- Inspect for visible damage
- Allow for temperature stabilization before use
In many applications, multiple load cells are used together to measure larger loads or to provide more stable measurements. When integrating multiple 4 wire load cells:
1. Ensure all load cells have matching specifications and capacities.
2. Use a summing box or junction box to combine signals properly.
3. Consider load cell trimming to match outputs for improved system accuracy.
4. Implement corner adjustment procedures for platform scales.
Mastering the art of checking and troubleshooting 4 wire load cells is essential for maintaining accurate and reliable weight measurement systems. By understanding the basics of load cell operation, following proper wiring and calibration procedures, and implementing regular maintenance practices, you can ensure optimal performance and longevity of your load cell installations. Remember that while many issues can be resolved through careful troubleshooting, some problems may require professional assistance or load cell replacement. Always prioritize safety and consult manufacturer guidelines when working with load cells and associated measurement equipment.
A1: The calibration frequency depends on various factors, including usage intensity, environmental conditions, and accuracy requirements. As a general rule, perform a calibration check at least once a year, or more frequently in demanding applications. Some industries may have specific regulations or standards that dictate calibration intervals.
A2: In most cases, it's not recommended to repair damaged load cells. The precision and sensitivity of these devices make repairs difficult and often unreliable. If a load cell is damaged or showing signs of malfunction, it's usually best to replace it with a new one to ensure accurate measurements.
A3: The main difference is that a 6 wire load cell includes two additional sense wires. These sense wires provide feedback about the actual voltage at the load cell, allowing the measuring instrument to compensate for voltage drops in long cables. This results in improved accuracy, especially in systems with long cable runs. 4 wire load cells are simpler and often sufficient for shorter cable lengths or less demanding applications.
A4: Select a load cell with a rated capacity that exceeds your maximum expected load by about 20-50%. This provides a safety margin and helps prevent overloading. However, don't choose a capacity that's too high, as this can reduce measurement resolution and accuracy for smaller loads. Consider factors like dynamic loading, shock loads, and future capacity needs when making your selection.
A5: Yes, environmental factors can significantly impact load cell performance. Temperature fluctuations, humidity, dust, vibration, and electromagnetic interference can all affect accuracy and longevity. Choose load cells rated for your specific environmental conditions, use appropriate protection (such as hermetically sealed models for wet environments), and implement proper shielding and grounding to minimize these effects.
