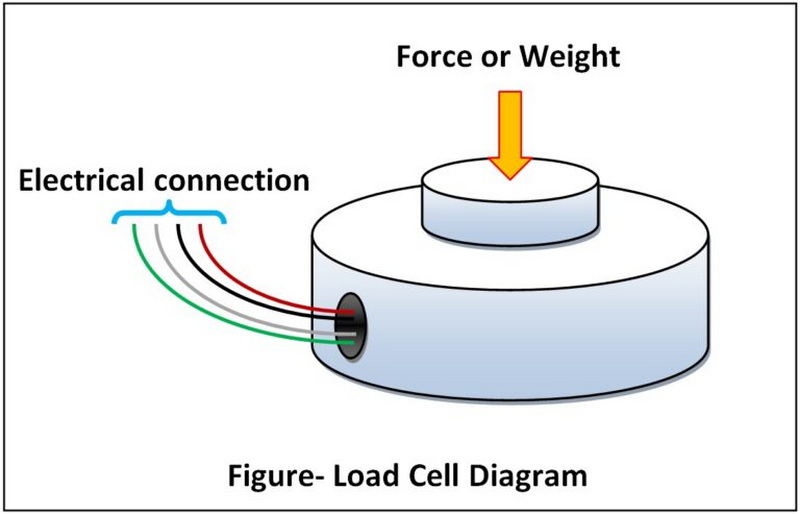

Load cells are crucial components in various industries, serving as the backbone of weight measurement systems. These precision instruments convert force or weight into electrical signals, enabling accurate measurements in applications ranging from industrial scales to aerospace engineering. Understanding how to properly connect, install, and maintain load cells is essential for achieving reliable and precise measurements.

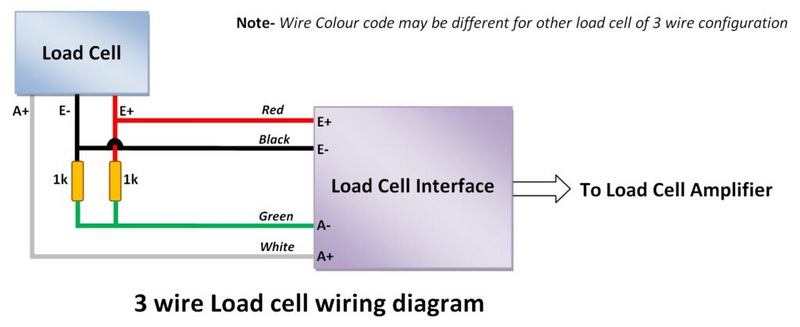

One of the first steps in connecting a load cell is understanding its wiring diagram. Load cells typically come with either four or six wires, each serving a specific purpose in the measurement process.
In a 4-wire configuration, the wires are typically color-coded as follows:
- Red: Excitation +
- Black: Excitation -
- Green: Signal +
- White: Signal -
This setup is simpler but may be more susceptible to voltage drops over long cable runs.

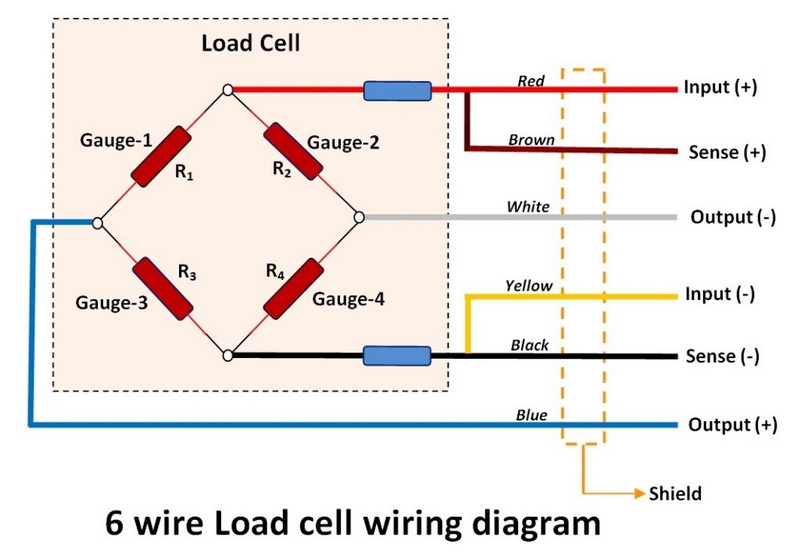

The 6-wire configuration adds two sense wires to the basic 4-wire setup:
- Red: Excitation +
- Black: Excitation -
- Green: Signal +
- White: Signal -
- Blue: Sense +
- Yellow: Sense -
The additional sense wires allow for more accurate voltage measurement at the load cell, compensating for potential voltage drops in the excitation lines.
In systems requiring multiple load cells, such as large platform scales, the load cells are typically wired in parallel. This ensures that the total output signal is the sum of all individual load cell signals, providing an accurate measurement of the total applied force or weight.
Proper installation of load cells is crucial for achieving accurate and reliable measurements. Here are some key considerations:
Ensure that the mounting surface is clean, flat, and rigid. Any unevenness or flexibility in the mounting surface can introduce errors in the measurements.
Load cells must be installed in the correct orientation to measure the intended force accurately. Pay close attention to the load cell's specified direction of measurement and align it accordingly.
Depending on the application, load cells may need protection from moisture, dust, or extreme temperatures. Consider using protective enclosures or selecting load cells with appropriate IP ratings for harsh environments.
Proper cable management is essential to prevent signal interference and physical damage. Route cables away from power sources and secure them to prevent strain on the connections.
Calibration is a critical process that ensures load cells maintain their accuracy over time. Here's an overview of the calibration process:
This step involves setting the load cell's output to zero when no load is applied. It compensates for the weight of any fixtures or containers that are part of the weighing system.
Span calibration involves applying a known weight to the load cell and adjusting the system to read the correct value. This process typically requires certified calibration weights.
After zero and span calibration, it's important to check the linearity of the load cell's response across its full range. This involves taking measurements at multiple points and ensuring the output is linear.
Many high-precision load cells include temperature compensation features. Proper calibration may involve adjusting these compensation parameters to ensure accuracy across the expected temperature range.
Load cells find applications in a wide range of industries, each with its unique requirements and challenges:
From simple bench scales to complex truck scales, load cells are the heart of industrial weighing systems. These applications often require high accuracy and durability to withstand harsh industrial environments.
In manufacturing and processing industries, load cells play a crucial role in monitoring and controlling material flow. They're used in hoppers, tanks, and conveyor systems to ensure precise ingredient measurements and maintain product quality.
Load cells are essential in testing the structural integrity of aircraft components and automotive parts. They're used in fatigue testing, crash testing, and wind tunnel experiments to measure forces and stresses.
In the medical field, load cells are used in various devices, from patient lifts to high-precision analytical balances in laboratories. These applications often require extremely high accuracy and reliability.
Load cells are integral to many robotic systems, providing force feedback for precise control in tasks such as assembly, material handling, and quality control.
Even with proper installation and calibration, load cell systems can sometimes encounter issues. Here are some common problems and their solutions:
If you notice the load cell output drifting over time or showing instability, check for:
- Temperature fluctuations
- Loose connections
- Moisture ingress
- Mechanical stress on the load cell
Non-linear response can be caused by:
- Overloading
- Improper mounting
- Damage to the load cell
If the zero point of the load cell shifts significantly, consider:
- Checking for debris or interference
- Verifying the mounting conditions
- Recalibrating the system
Electrical noise can cause erratic readings. To mitigate this:
- Use shielded cables
- Ensure proper grounding
- Keep load cell wiring away from power sources
Load cell outputs are typically in the millivolt range and require amplification and conditioning before they can be processed by data acquisition systems. Modern load cell amplifiers often include features such as:
- Programmable gain
- Low-pass filtering
- Excitation voltage regulation
- Digital output options (e.g., RS-232, USB)
Advancements in technology have led to the development of digital load cells, which incorporate analog-to-digital conversion and signal processing within the load cell itself. These offer advantages such as:
- Reduced susceptibility to electrical noise
- Easier integration with digital systems
- Built-in diagnostics and calibration features
Wireless load cell systems are gaining popularity in applications where cable routing is challenging or where mobility is required. These systems use radio frequency or Bluetooth technology to transmit data, offering greater flexibility in installation and use.
Connecting and using load cells effectively requires a comprehensive understanding of their wiring, installation, calibration, and application-specific requirements. By following best practices in each of these areas, you can ensure accurate and reliable force measurements across a wide range of industries and applications. As technology continues to advance, load cells will undoubtedly play an even more crucial role in precision measurement and control systems.
A1: The frequency of load cell calibration depends on several factors, including the application, environmental conditions, and regulatory requirements. In general, it's recommended to calibrate load cells at least annually. However, some high-precision or critical applications may require more frequent calibration, possibly as often as monthly or quarterly. Always consult the manufacturer's recommendations and any applicable industry standards for your specific use case.
A2: Yes, it is possible to use a 4-wire load cell in a 6-wire system, but you'll need to make some adjustments. To do this, you should connect the excitation sense wires (typically blue and yellow in a 6-wire system) to the corresponding excitation wires (red and black) at the load cell amplifier or indicator end. This effectively converts the 6-wire input to accept the 4-wire load cell. However, you'll lose the advantage of voltage sense compensation that a true 6-wire system provides.
A3: Zero drift in load cells can be caused by several factors:
1. Temperature changes
2. Creep in the load cell material
3. Moisture ingress
4. Mechanical stress or deformation of the mounting structure
To minimize zero drift:
- Use temperature-compensated load cells
- Ensure proper environmental protection (e.g., sealed enclosures)
- Allow sufficient warm-up time for the system
- Regularly check and re-zero the system
- Use high-quality load cells with low creep characteristics
- Ensure proper, stress-free mounting
A4: Choosing the right capacity load cell involves several considerations:
1. Determine the maximum weight or force you need to measure
2. Add a safety factor (typically 20-50%) to account for potential overloads
3. Consider dynamic loads if applicable (e.g., impact or vibration)
4. Check the resolution and accuracy requirements of your application
5. Consider environmental factors (temperature range, moisture, etc.)
It's generally better to choose a load cell with a capacity slightly higher than your maximum expected load to ensure accuracy and prevent damage from overloading. However, avoid selecting a load cell with too high a capacity, as this can reduce sensitivity and accuracy for smaller loads.
A5: Strain gauge and hydraulic load cells are two different technologies used for force measurement:Strain Gauge Load Cells:
- Use electrical resistance changes in a strain gauge to measure force
- Typically more accurate and have faster response times
- Suitable for a wide range of capacities and applications
- Require electrical power and signal conditioning
- More sensitive to temperature changesHydraulic Load Cells:
- Use fluid pressure to measure force
- Can be used in hazardous environments as they don't require electricity
- Generally more rugged and can handle overloads better
- Slower response time compared to strain gauge load cells
- Less affected by temperature changes
- Limited in terms of accuracy and resolution compared to strain gauge types
The choice between these types depends on the specific requirements of the application, including accuracy needs, environmental conditions, and safety considerations.
