Load cells are essential components in various applications, particularly in weighing systems. They convert force or weight into an electrical signal, which can be measured and interpreted by microcontrollers like Arduino. This article will guide you through the process of connecting a load cell to an Arduino, using the HX711 amplifier for accurate weight measurements.
A load cell is a type of transducer that converts mechanical force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges arranged in a Wheatstone bridge configuration. When a load is applied, the strain gauges deform, changing their resistance and producing a measurable voltage change.
1. Compression Load Cells: Used for measuring compressive forces.
2. Tension Load Cells: Designed to measure tensile forces.
3. Shear Beam Load Cells: Commonly used in industrial applications for weighing.
Load cells are widely used in industrial scales, medical devices, and even in robotics for force measurement.
To connect a load cell to an Arduino, you will need the following components:
- Load Cell
- HX711 Load Cell Amplifier
- Arduino Board (e.g., Arduino Uno)
- Jumper Wires
- Breadboard (optional)
- LCD Display (optional for output)

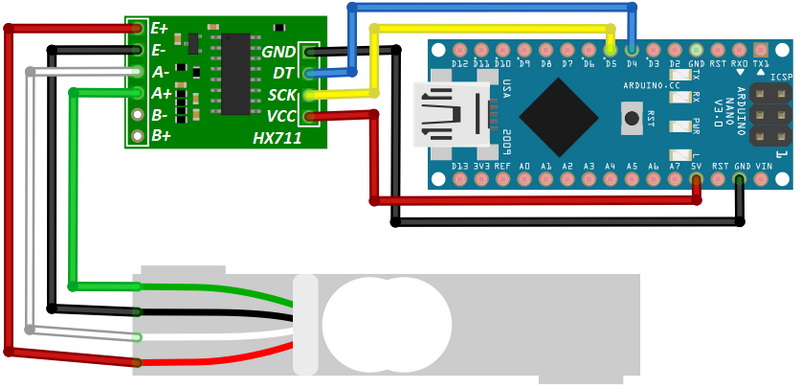

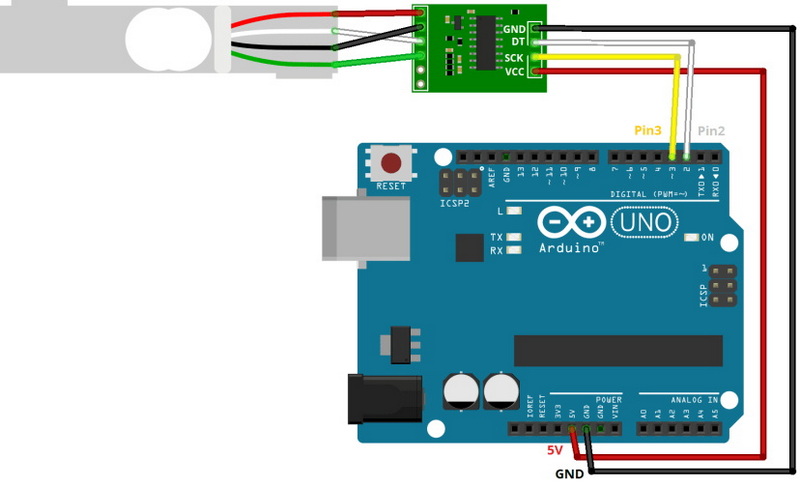

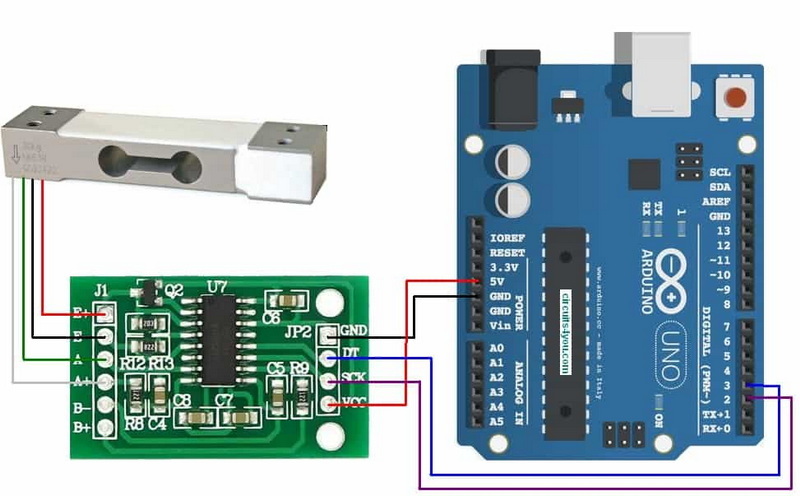

Connecting a load cell to an Arduino involves a few simple steps. Below is a wiring diagram to help you visualize the connections.
1. Connect the Load Cell to the HX711:
- Red wire (E+) to the HX711 E+ terminal.
- Black wire (E-) to the HX711 E- terminal.
- Green wire (A+) to the HX711 A+ terminal.
- White wire (A-) to the HX711 A- terminal.
2. Connect the HX711 to the Arduino:
- Connect the VCC pin of the HX711 to the 5V pin on the Arduino.
- Connect the GND pin of the HX711 to the GND pin on the Arduino.
- Connect the DT pin of the HX711 to a digital pin on the Arduino (e.g., D2).
- Connect the SCK pin of the HX711 to another digital pin on the Arduino (e.g., D3).
The HX711 is a precision 24-bit analog-to-digital converter (ADC) designed specifically for weighing scales. It amplifies the small voltage changes from the load cell, allowing the Arduino to read accurate weight measurements.
- High precision and accuracy
- Simple interface with Arduino
- Low power consumption
- The `HX711` library is included to facilitate communication with the HX711 module.
- The `scale.begin()` function initializes the HX711 with the specified data and clock pins.
- The `scale.get_units()` function retrieves the weight in grams.
Calibration is crucial for ensuring accurate weight measurements. To calibrate your load cell:
1. Place a known weight on the load cell.
2. Adjust the calibration factor in your code until the output matches the known weight.
Once you have connected and calibrated your load cell, you can build a digital scale. You can display the weight on an LCD or serial monitor.
- Inaccurate Readings: Ensure the load cell is calibrated correctly and check for any loose connections.
- No Output: Verify that the HX711 is powered and connected properly to the Arduino.
Connecting a load cell to an Arduino using the HX711 amplifier is a straightforward process that opens up numerous possibilities for weight measurement applications. With the right components and a bit of programming, you can create a highly accurate digital scale.
A load cell is a sensor that converts force or weight into an electrical signal.
The HX711 amplifies the small voltage changes from the load cell, allowing for precise weight measurements.
Yes, but it requires a more complex setup with additional components.
Load cells are used in industrial scales, medical devices, and robotics for force measurement.
Place a known weight on the load cell and adjust the calibration factor in your code until the output matches the known weight.
This article provides a comprehensive guide to connecting a load cell with Arduino, ensuring you have all the necessary information to successfully complete your project.
