Load cells are essential components in various applications, including industrial weighing, force measurement, and material testing. When combined with National Instruments (NI) Data Acquisition (DAQ) systems, they provide accurate and reliable measurements. This article will guide you through the process of using a load cell with an NI DAQ system, covering the necessary components, setup procedures, and programming techniques.
A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauge deforms, causing a change in its electrical resistance. This change can be measured and converted into a weight or force reading.
1. Compression Load Cells: These load cells measure the force applied in a compressive manner. They are often used in applications like weighing scales and material testing.
2. Tension Load Cells: These measure the force applied in a tensile manner. They are commonly used in applications such as hanging scales and force measurement in cables.
3. S-Type Load Cells: These can measure both tension and compression forces. They are versatile and widely used in various applications.

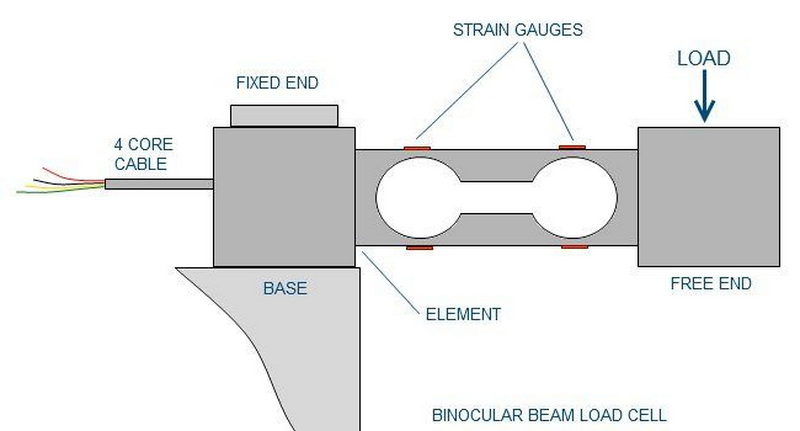

Load cells operate based on the principle of converting mechanical force into an electrical signal. The most common mechanism involves strain gauges, which are bonded to a metal element. When a load is applied, the metal element deforms, causing the strain gauges to stretch or compress. This deformation changes the electrical resistance of the strain gauges, which can be measured and converted into a voltage signal. The output voltage is proportional to the applied load, allowing for accurate weight measurements.
National Instruments offers a range of DAQ systems that allow users to acquire, analyze, and present data from various sensors, including load cells. NI DAQ systems are known for their flexibility, scalability, and ease of integration with software like LabVIEW.
- High Sampling Rates: NI DAQ systems can sample data at high rates, making them suitable for dynamic measurements.
- Multiple Channels: Many NI DAQ devices support multiple input channels, allowing for simultaneous measurements from several load cells.
- Signal Conditioning: NI DAQ systems often include built-in signal conditioning features, which are essential for accurately measuring load cell outputs.
Integrating load cells with NI DAQ systems offers several advantages:
- Real-Time Data Acquisition: Users can monitor measurements in real-time, allowing for immediate analysis and decision-making.
- Data Logging: NI DAQ systems can log data for long-term analysis, which is crucial for research and quality control.
- User-Friendly Software: LabVIEW provides a graphical programming environment that simplifies the process of data acquisition and analysis.
To set up a load cell with an NI DAQ system, you will need the following components:
1. Load Cell: Choose a load cell that suits your application (compression, tension, or S-type).
2. NI DAQ Device: Select an appropriate NI DAQ device based on your measurement requirements.
3. Signal Conditioning Module: If your DAQ device does not have built-in signal conditioning, you may need an external signal conditioner.
4. Wiring and Connectors: Ensure you have the necessary wiring and connectors to connect the load cell to the DAQ system.
5. Software: Install NI LabVIEW or other compatible software for data acquisition and analysis.
1. Identify Load Cell Wires: Most load cells have four wires: red (excitation+), black (excitation-), green (signal+), and white (signal-). Refer to the load cell's datasheet for specific wiring instructions.
2. Connect to Signal Conditioner: If using a signal conditioner, connect the load cell wires to the appropriate terminals on the conditioner.
3. Connect to NI DAQ: Connect the output of the signal conditioner to the input channels of the NI DAQ device.
1. Install NI Software: Ensure that you have installed the necessary NI software, such as NI MAX (Measurement & Automation Explorer) and LabVIEW.
2. Create a New DAQmx Task: Open NI MAX and create a new DAQmx task. Select the appropriate input channels corresponding to the load cell connections.
3. Configure Input Settings: Set the input type to voltage or current, depending on the output of your signal conditioner. Configure the sampling rate and other parameters as needed.
1. Open LabVIEW: Launch LabVIEW and create a new VI (Virtual Instrument).
2. Add DAQmx Functions: Use the DAQmx functions to configure the task, start the acquisition, and read the data from the load cell.
3. Signal Processing: Implement any necessary signal processing algorithms to convert the raw data into meaningful measurements (e.g., converting voltage to weight).
4. Display Results: Use LabVIEW's graphical interface to display the results in real-time, such as plotting the weight measurement on a graph.
Calibration is crucial for ensuring accurate measurements from your load cell. It involves comparing the load cell's output against known weights and adjusting the system accordingly. Regular calibration helps maintain the accuracy and reliability of measurements over time.
1. Prepare Calibration Weights: Gather a set of known weights that cover the range of expected measurements.
2. Record Output: Apply each weight to the load cell and record the corresponding output voltage or signal.
3. Create Calibration Curve: Plot the recorded outputs against the known weights to create a calibration curve.
4. Adjust Settings: Use the calibration curve to adjust the settings in your LabVIEW program to ensure accurate weight readings.
- Perform Regular Calibration: Schedule regular calibration sessions to ensure ongoing accuracy.
- Use High-Quality Weights: Ensure that the calibration weights are certified and accurate.
- Document Calibration Results: Keep a record of calibration results for quality control and compliance purposes.
If you experience noisy signals, consider the following solutions:
- Check Connections: Ensure all connections are secure and properly wired.
- Use Shielded Cables: Shielded cables can help reduce electromagnetic interference.
- Implement Filtering: Use software filtering techniques in LabVIEW to smooth out the data.
If the readings are inaccurate, check the following:
- Calibration: Ensure the load cell is properly calibrated.
- Signal Conditioning: Verify that the signal conditioning is functioning correctly.
- Environmental Factors: Consider environmental factors such as temperature and humidity that may affect measurements.
Overloading a load cell can lead to permanent damage. To prevent this:
- Use a Load Cell with Appropriate Capacity: Ensure the load cell's capacity exceeds the maximum expected load.
- Implement Safety Features: Use mechanical stops or overload protection circuits to prevent excessive loads.
Load cells are widely used in industrial applications for weighing materials, products, and containers. By integrating with NI DAQ systems, companies can automate weighing processes and improve accuracy. This integration allows for real-time monitoring and data logging, which is essential for quality control and inventory management.
In research and development, load cells are used to test the strength and durability of materials. NI DAQ systems allow for precise measurements and data analysis during testing. This capability is crucial in industries such as construction, aerospace, and automotive, where material properties must meet stringent standards.
Load cells can measure forces in various applications, such as robotics and automation. By using NI DAQ systems, engineers can monitor and control forces in real-time. This application is particularly important in robotic systems, where precise force control is necessary for safe and effective operation.
In academic and industrial research, load cells are used to gather data for experiments and product development. The combination of load cells and NI DAQ systems enables researchers to collect high-quality data efficiently, facilitating innovation and advancements in technology.
Using a load cell with a National Instruments DAQ system provides a powerful solution for accurate force and weight measurements. By following the steps outlined in this article, you can successfully set up, configure, and program your load cell system. With proper calibration and troubleshooting techniques, you can ensure reliable performance in various applications.
Tension load cells measure forces applied in a pulling manner, while compression load cells measure forces applied in a pushing manner. Tension load cells are often used in applications like hanging scales, whereas compression load cells are used in weighing scales and material testing.
Calibration frequency depends on the application and usage conditions. For critical applications, it is recommended to calibrate load cells at least once a year. However, if the load cell is subjected to heavy use or harsh conditions, more frequent calibration may be necessary.
Yes, many NI DAQ devices support multiple input channels, allowing you to connect and measure data from several load cells simultaneously. Ensure that the DAQ device has enough channels to accommodate all the load cells you plan to use.
If you experience unstable readings, check for loose connections, electrical noise, or improper grounding. Additionally, consider implementing software filtering techniques in your data acquisition program to smooth out the data.
While some NI DAQ devices have built-in signal conditioning, using an external signal conditioner can enhance measurement accuracy and stability. Signal conditioners can amplify the load cell's output and filter out noise, providing a cleaner signal for data acquisition.
