Load cells are transducers that convert force or weight into an electrical signal. They are widely used in industrial applications, weighing scales, and other systems where precise measurement of weight or force is necessary. The output from a load cell is typically a small voltage signal that varies depending on the amount of force applied.
Load cells come in various types, including:
- Strain Gauge Load Cells: These are the most common type and work based on the principle of strain gauges that change resistance when deformed.
- Hydraulic Load Cells: These use fluid pressure to measure weight and are often used in heavy-duty applications.
- Pneumatic Load Cells: Similar to hydraulic cells but use air pressure instead; they are suitable for lighter loads.
- Capacitive Load Cells: These measure changes in capacitance caused by load changes and are used for very precise measurements.
The calibration factor (often referred to as the sensitivity or scale factor) is a numerical value that relates the output signal of the load cell to the actual weight or force being measured. It is expressed in units such as volts per kilogram (V/kg) or millivolts per kilogram (mV/kg). The calibration factor allows users to convert the raw output from the load cell into meaningful weight measurements.
- Accuracy: A correct calibration factor ensures that the readings from the load cell accurately reflect the actual weight or force applied.
- Consistency: Calibration factors help maintain consistency across measurements, ensuring that different load cells provide comparable results.
- Traceability: Calibration factors can be traced back to national or international standards, providing confidence in the measurements taken.
- Regulatory Compliance: Many industries require strict adherence to measurement standards for quality control and regulatory compliance. Accurate calibration factors help meet these requirements.
Determining the calibration factor involves a systematic process that typically includes the following steps:

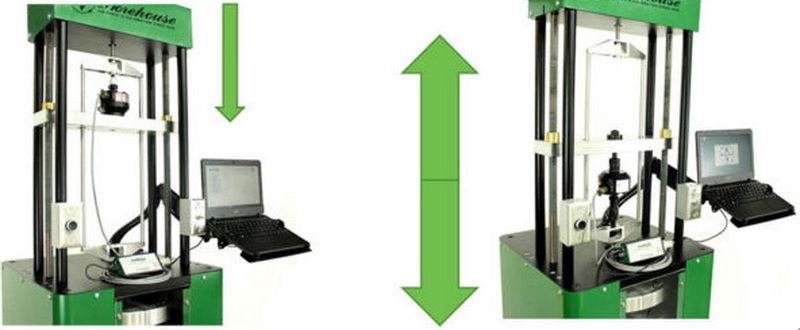

1. Setup: The load cell is installed in its intended application environment, ensuring that it is properly mounted and connected to a data acquisition system.
2. Zeroing: Before applying any weights, the load cell should be zeroed to account for any offsets. This means recording the output when no load is applied and adjusting it to zero.

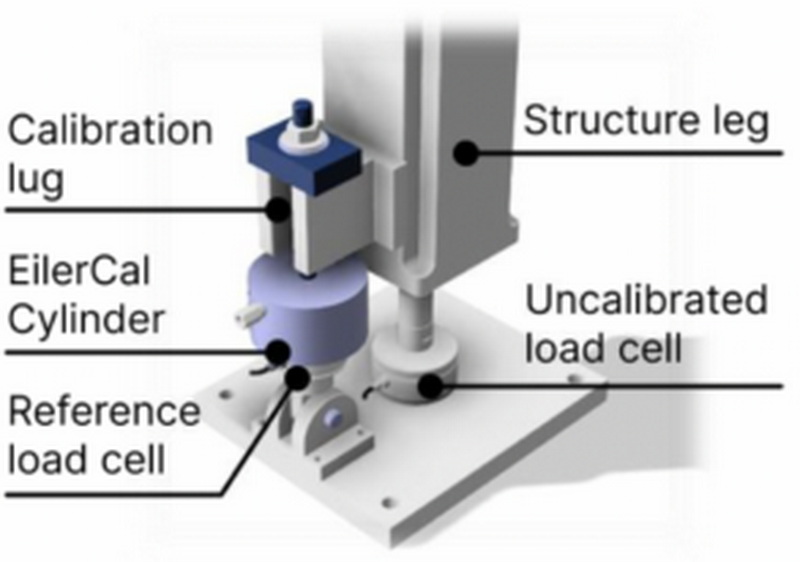

3. Applying Known Weights: A series of known weights are applied to the load cell. These weights should cover a range that includes at least 75% of the load cell's capacity for accurate calibration.
4. Recording Output: For each known weight applied, the corresponding output signal from the load cell is recorded.
5. Calculating Calibration Factor: The calibration factor can be calculated using the formula:
$$
\text{Calibration Factor} = \frac{\text{Output Signal (mV)}}{\text{Applied Weight (kg)}}
$$
This calculation can be performed for multiple data points to ensure accuracy.
6. Regression Analysis: Often, a regression analysis is performed on all collected data points to derive a best-fit line, which helps in determining a more precise calibration factor that accounts for any non-linearities in the response of the load cell.
Several factors can influence the calibration process and results:
- Temperature: Load cells can exhibit different characteristics at varying temperatures. It's essential to calibrate under stable temperature conditions.
- Hysteresis: This refers to discrepancies between loading and unloading responses. Proper calibration should account for hysteresis effects.
- Mechanical Setup: The way a load cell is mounted can affect its performance. Ensuring proper alignment and support during calibration is crucial.
- Environmental Conditions: Factors such as humidity, vibration, and electromagnetic interference can affect load cell performance and should be controlled during calibration.
Load cells are used across various industries, including:
- Manufacturing: For weighing raw materials and finished products. Accurate measurements ensure quality control and efficiency in production lines.
- Food Industry: In packaging and portion control systems where precise measurements are critical for compliance with health regulations and customer satisfaction.
- Pharmaceuticals: For accurate dosing and ingredient measurement, ensuring that products meet stringent regulatory standards for safety and efficacy.

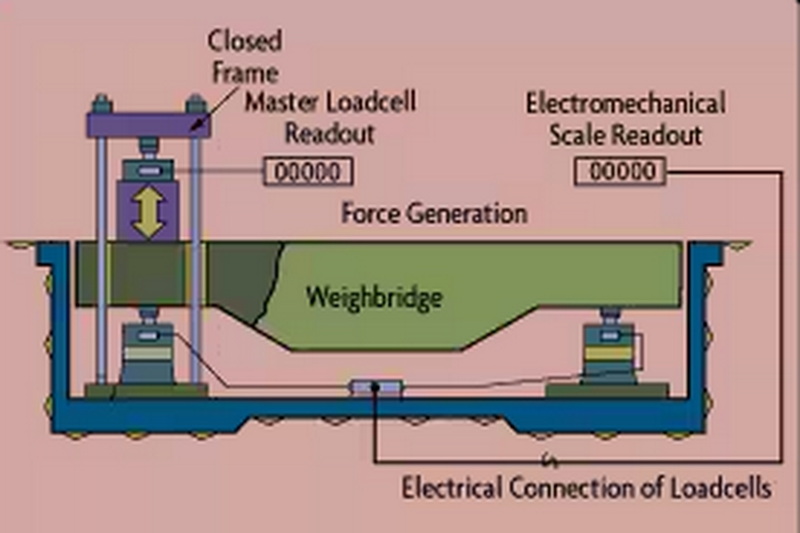

- Transportation: In weighbridges for vehicle weight measurement, helping enforce legal weight limits on roads and highways.
- Aerospace and Defense: In testing environments where precise measurements of forces are critical for safety assessments of components under stress.
To ensure accurate calibration results, consider implementing these best practices:
- Regular Calibration Schedule: Establish a routine schedule for calibrating load cells based on usage frequency and environmental conditions.
- Use Certified Weights: Always use certified weights for calibration to ensure accuracy and traceability to national standards.
- Document Calibration Procedures: Maintain detailed records of all calibration activities, including dates, methods used, equipment involved, and results obtained for future reference and compliance audits.
- Training Personnel: Ensure that personnel involved in calibration processes are adequately trained on procedures and equipment usage to minimize errors during calibration.
Despite following best practices, issues may arise during calibration. Here are some common problems and solutions:
- Inconsistent Readings:
- *Cause*: Mechanical misalignment or improper mounting.
- *Solution*: Recheck alignment and mounting conditions; ensure proper installation according to manufacturer specifications.
- Drift Over Time:
- *Cause*: Environmental changes such as temperature fluctuations.
- *Solution*: Implement environmental controls where possible; recalibrate more frequently if necessary.
- Non-linear Output:
- *Cause*: Hysteresis or non-linear characteristics of certain types of load cells.
- *Solution*: Use regression analysis during calibration to account for non-linearity; consider using digital signal processing techniques if applicable.
The calibration factor is an essential aspect of load cell operation, enabling accurate measurement of weight and force. Proper determination and application of this factor ensure that measurements are reliable and consistent across different applications. Regular recalibration is necessary to maintain accuracy over time, especially in environments where conditions may change frequently. By understanding how calibration factors work and implementing best practices in their determination, industries can significantly enhance their operational efficiency while ensuring compliance with regulatory standards.
- If a load cell is not calibrated, it may provide inaccurate readings, leading to errors in measurement that can affect production quality and compliance with standards.
- Load cells should be calibrated at least annually or more frequently if they are used in critical applications or subjected to harsh conditions.
- Yes, with proper equipment and known weights, you can calibrate a load cell yourself; however, professional calibration services are recommended for critical applications.
- Common tools include known weights, a multimeter or data acquisition system, and software for data analysis if applicable.
- Temperature changes can affect material properties and electrical resistance within the load cell, potentially leading to drift in readings if not accounted for during calibration.
