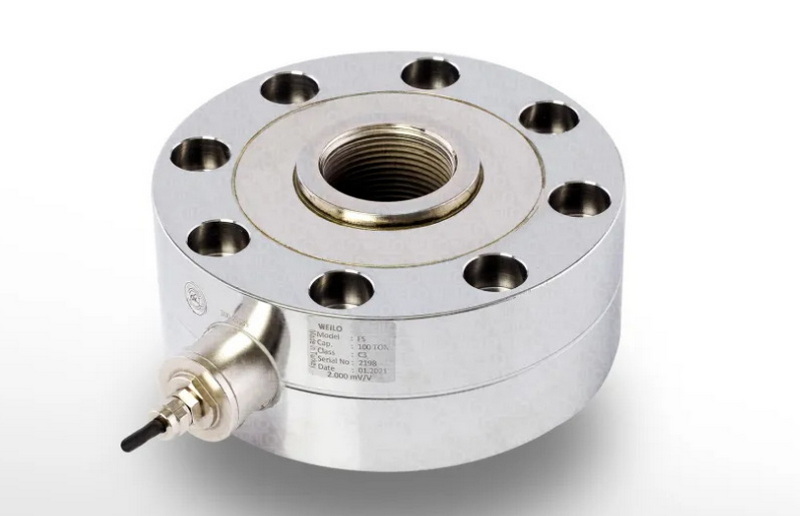

A load cell is a transducer that converts a force applied to it into an electrical signal. This conversion allows for precise measurement of weight or force in various applications, including industrial scales, medical devices, and research equipment.
There are several types of load cells, each designed for specific applications:
- Strain Gauge Load Cells: The most common type, utilizing strain gauges to measure deformation.
- Hydraulic Load Cells: Use fluid pressure to measure force.
- Pneumatic Load Cells: Measure force through changes in air pressure.
- Single Point Load Cells: Ideal for small scales where the load is applied at a single point.

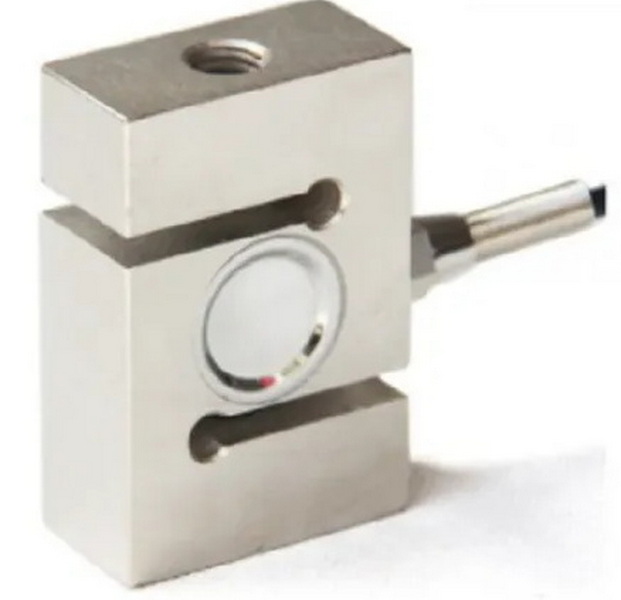

- S-Beam Load Cells: Used for tension and compression measurements, often found in overhead scales.
- Shear Beam Load Cells: Commonly used in platform scales due to their robust design.
Load cells operate based on the principle of converting mechanical energy (force) into electrical energy. When a load is applied to the load cell, it deforms slightly. This deformation changes the resistance of strain gauges attached to the load cell, producing an electrical signal proportional to the applied force.
The output signal can be processed and displayed on a digital readout or used in control systems for automated processes.

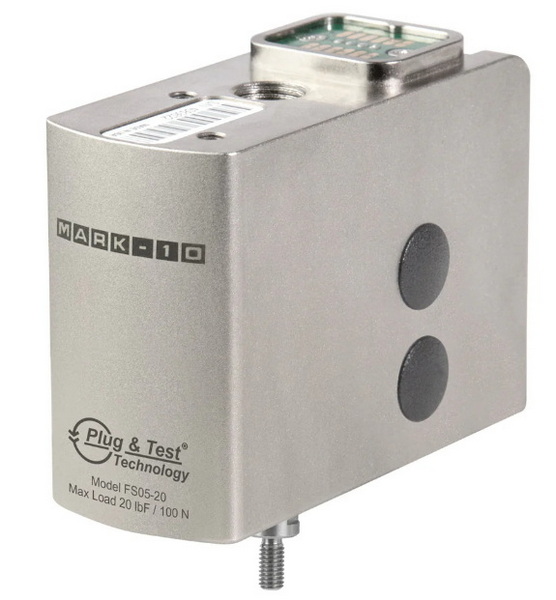

In the context of load cells, Full Scale (FS) refers to the maximum load that a load cell can accurately measure. It is a critical specification that defines the upper limit of the load cell's operational range.
Full Scale Output (FSO) is often used interchangeably with FS. It represents the electrical output signal generated by the load cell when it is loaded to its maximum rated capacity. FSO is typically expressed in millivolts per volt (mV/V), indicating how much voltage output corresponds to each volt of excitation applied to the load cell.
For example, if a load cell has an FSO of 2 mV/V and is subjected to its maximum rated capacity (e.g., 10,000 kg), the output signal will be approximately 20 mV when powered with a 10V excitation voltage.
Understanding FSO is crucial because it directly affects how accurately and reliably a load cell can measure forces within its specified range. A higher FSO indicates that small changes in load will produce more significant voltage changes, which can enhance measurement sensitivity.
Understanding FS is crucial when selecting a load cell for your application. Here are some reasons why:
The accuracy of a load cell is often specified as a percentage of its full scale. For instance, a load cell with an accuracy specification of ±0.1% FS means that at its maximum capacity, the measurement could vary by ±10 kg if its full scale is 10,000 kg.
Different applications require different FS values:
- Industrial Weighing: May require high-capacity load cells with FS values in tons.
- Laboratory Measurements: Often need lower capacity load cells with precise FS values.
- Medical Devices: Require high precision and low noise levels; thus, appropriate FS selection is critical.
- Automotive Testing: Involves dynamic loads; hence, choosing a suitable FS ensures accurate measurements during testing.
Selecting a load cell with an appropriate FS value ensures safety during operation. Using a load cell beyond its rated capacity can lead to failure or inaccurate readings, which may pose risks in industrial settings or critical applications like medical devices.
Several factors can influence the performance and reliability of Full Scale Output in load cells:
Temperature variations can affect the zero balance and sensitivity of a load cell, leading to inaccuracies in measurements at full scale. Most manufacturers provide temperature compensation data to help mitigate these effects.
Non-linearity refers to how much the actual output deviates from a straight line between zero output and full scale output. This deviation can introduce errors, especially at higher loads.
Hysteresis is the difference in output readings when loads are applied and then removed. It can affect repeatability and accuracy at full scale.
Prolonged exposure to loads near or at full scale can lead to mechanical fatigue over time, potentially affecting performance and accuracy.
Improper installation can lead to misalignment or uneven loading on the load cell, which may cause inaccuracies in measurements, especially near full scale.
To calculate Full Scale Output (FSO), you can use the following formula:
$$
\text{FSO} = \frac{\text{Output Voltage at Full Capacity}}{\text{Excitation Voltage}} \times \text{Rated Capacity}
$$
For example, if a load cell produces an output voltage of 20 mV at its rated capacity with an excitation voltage of 10V:
$$
\text{FSO} = \frac{20 \text{ mV}}{10 \text{ V}} = 2 \text{ mV/V}
$$
This means that for every volt supplied to the load cell, there will be an output of 2 mV when at full scale capacity.
Calibration is essential for ensuring that a load cell provides accurate readings throughout its operational range. The calibration process involves applying known weights to the load cell and adjusting its output until it matches these known values within specified tolerances.
1. Prepare Calibration Weights: Use certified weights that are traceable to national standards.
2. Set Up Equipment: Ensure that all connections are secure and that there are no sources of interference.
3. Apply Known Weights: Gradually apply known weights across the entire range from zero up to full scale.
4. Record Output Signals: Measure and record the output signals corresponding to each known weight.
5. Adjust Calibration Settings: If discrepancies are found between expected and actual outputs, adjust calibration settings accordingly.
6. Verify Calibration: Repeat measurements after adjustments to ensure accuracy across all points.
Proper calibration ensures that your measurements remain reliable over time and under varying conditions.
Understanding Full Scale (FS) and Full Scale Output (FSO) is vital for selecting and using load cells effectively in various applications. By considering factors like accuracy, temperature effects, non-linearity, hysteresis, mechanical stress, installation conditions, and calibration processes, users can ensure they choose the right load cell for their specific needs.
Load cells play a crucial role in industries ranging from manufacturing to healthcare by providing accurate weight measurements necessary for quality control processes or patient monitoring systems.
FSO stands for Full Scale Output, which indicates the maximum electrical output signal produced by a load cell when it reaches its rated capacity.
Temperature variations can impact zero balance and sensitivity, leading to inaccuracies in measurements at full scale.
Non-linearity refers to how much the actual output deviates from an ideal straight line between zero output and full scale output.
Hysteresis affects repeatability and accuracy by causing differences in output readings when loads are applied versus when they are removed.
Consider factors such as capacity requirements, application type, environmental conditions, and desired accuracy when selecting a load cell.
