Understanding where your tire pressure sensor is located is crucial for maintaining safe driving conditions and maximizing the lifespan of your tires. This comprehensive guide will walk you through the types, locations, and maintenance of tire pressure sensors. By the end, you'll know exactly where to find these vital components, how they work, and how to address common issues.
A tire pressure sensor is a key component of the Tire Pressure Monitoring System (TPMS), designed to monitor the air pressure inside your tires and alert you if it falls below the recommended level. This technology helps prevent accidents caused by under-inflated tires and improves fuel efficiency and tire longevity. The TPMS is now a standard safety feature in modern vehicles, and understanding its function is essential for every car owner.

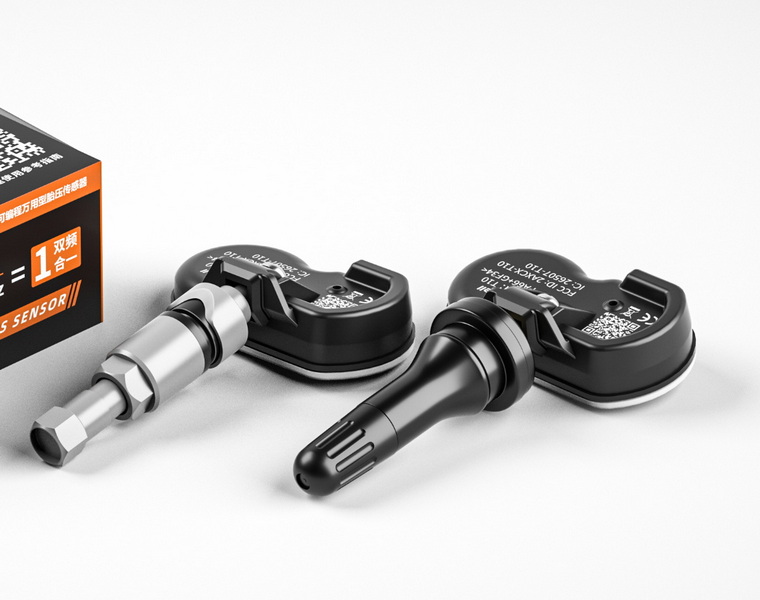

Direct TPMS uses physical sensors inside each tire to directly measure air pressure and send real-time data to your vehicle's computer. These sensors are highly accurate and can provide individual pressure readings for each tire. Direct TPMS sensors are battery-powered and transmit data wirelessly to the vehicle's onboard computer.
Key Features:
- Provides real-time, individual tire pressure readings.
- Sensors are located inside the tire, either attached to the valve stem or banded to the wheel.
- Requires periodic sensor replacement due to battery depletion.
Indirect TPMS does not use physical pressure sensors in the tires. Instead, it relies on the vehicle's anti-lock braking system (ABS) wheel speed sensors to detect changes in wheel speed, which can indicate a change in tire pressure. When a tire loses pressure, its diameter decreases, causing it to rotate faster than the others. The system detects this and triggers a warning.
Key Features:
- No physical sensor inside the tire.
- Uses ABS wheel speed sensors.
- Less accurate than direct TPMS.
- Does not provide individual tire pressure readings.

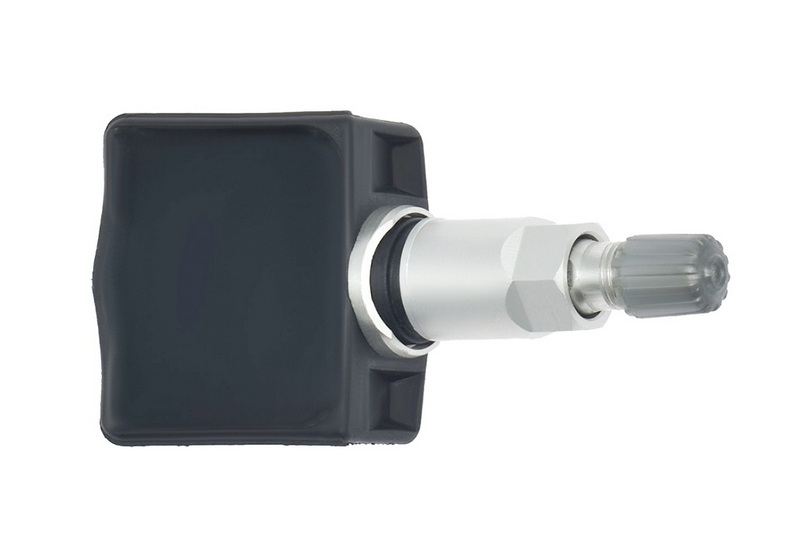

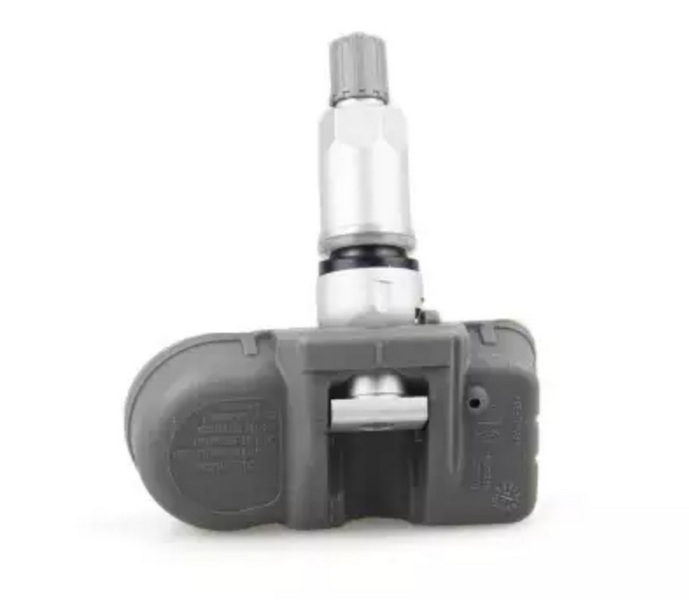

The most common type, these sensors are attached to the base of the valve stem inside the wheel. From the outside, the valve stem may look like a standard stem, but inside the wheel, a small electronic device is attached to the base.
- How to Access:
Remove the tire from the rim. Once the tire bead is broken, you'll see the sensor at the base of the valve stem.
Less common and typically found in some older Ford and Lincoln models, these sensors are secured to the wheel's inner circumference with a metal or plastic band. The sensor is a small rectangular device strapped to the wheel's drop center.
- How to Access:
Remove the tire from the wheel to view the sensor and band assembly.
Indirect systems do not have a physical sensor inside the tire. Instead, they use the ABS wheel speed sensors, which are typically located near the brake rotors. These sensors are mounted on the wheel hub assembly and are responsible for monitoring the rotational speed of each wheel.
- Jack and jack stands
- Lug wrench
- Valve core removal tool
- Tire bead breaker or tire changing machine
- TPMS sensor tool (for programming/relearning)
- Replacement TPMS sensor (if needed)
- Torque wrench
Park the vehicle on a flat surface and engage the parking brake. Use a jack to lift the vehicle and secure it with jack stands. Remove the lug nuts with a lug wrench and take off the wheel.
Remove the valve cap and use a valve core removal tool to let out all the air from the tire.
Use a bead breaker or a tire changing machine to separate the tire sidewall from the wheel rim. This step is necessary to access the inside of the wheel where the sensor is located.
- For valve stem-mounted sensors, look at the base of the valve stem inside the wheel.
- For banded sensors, look for the sensor strapped to the inner circumference of the wheel.
Carefully unscrew or unclip the sensor, taking care not to damage it or the wheel. Install the new sensor in the same location, ensuring it is properly secured. Reassemble the tire and wheel, inflate the tire to the recommended pressure, and reinstall the wheel on the vehicle.
Most vehicles require the new sensor to be programmed or “relearned” so it can communicate with the vehicle's computer. This process varies by manufacturer and may require a special TPMS tool.
Direct sensors use a pressure transducer and a tiny radio transmitter. The pressure transducer measures the air pressure inside the tire, while the transmitter sends this data to the vehicle's onboard computer. Some sensors also measure temperature, which helps provide more accurate readings.
- Power Source:
Most TPMS sensors are powered by a small lithium battery, which typically lasts 5–10 years.
- Communication:
Sensors transmit data at regular intervals, especially when the vehicle is moving. If the pressure drops below a preset threshold, the system triggers a warning light on the dashboard.
Indirect systems do not measure pressure directly. Instead, they use the ABS sensors to detect differences in wheel speed. If a tire loses pressure, its diameter decreases, causing it to rotate faster than the others. The system detects this discrepancy and triggers a warning.
- Safety:
Proper tire pressure is essential for safe handling, braking, and overall vehicle stability. Under-inflated tires can lead to blowouts, poor traction, and increased stopping distances.
- Fuel Efficiency:
Under-inflated tires increase rolling resistance, which reduces fuel efficiency. Keeping your tires properly inflated can improve gas mileage by up to 3%.
- Tire Longevity:
Incorrect tire pressure causes uneven wear, reducing the lifespan of your tires. Maintaining proper pressure ensures even wear and extends tire life.
Most direct TPMS sensors are powered by a non-replaceable lithium battery. When the battery dies (typically after 5–10 years), the sensor stops transmitting data and must be replaced.
Sensors can be damaged during tire changes, from potholes, or by corrosion. Damaged sensors may fail to transmit data or provide inaccurate readings.
When a new sensor is installed, it often needs to be programmed or “relearned” to communicate with your vehicle's computer. This process varies by manufacturer and may require a special tool.
Radio frequency interference from other electronic devices can sometimes disrupt the communication between the sensor and the vehicle's computer.
In climates where road salt is used, the metal valve stems used with some TPMS sensors can corrode, leading to air leaks or sensor failure.
If your TPMS warning light comes on, it could indicate:
- One or more tires are under-inflated.
- A sensor has failed or lost communication.
- There is a problem with the TPMS control module.
1. Check Tire Pressure:
Use a manual gauge to check all tires, including the spare (if equipped with a sensor).
2. Reset the TPMS:
Some vehicles allow you to reset the TPMS system through the dashboard menu. Consult your owner's manual for instructions.
3. Scan for Codes:
Use a TPMS scan tool or visit a mechanic to check for diagnostic trouble codes related to the TPMS.
4. Inspect Sensors:
If the problem persists, have the sensors inspected for physical damage or battery failure.
- Check Tire Pressure Regularly:
Even with TPMS, you should manually check your tire pressure at least once a month.
- Avoid Damaging Sensors:
When changing tires, inform the technician about the TPMS sensors to prevent accidental damage.
- Replace Sensors as Needed:
If a sensor fails or the battery dies, replace it promptly to maintain system functionality.
- Keep Valve Stems Clean:
Clean and inspect valve stems regularly to prevent corrosion and leaks.
If you use separate sets of wheels for summer and winter tires, each set will need its own TPMS sensors. When swapping wheels, the vehicle may need to relearn the new sensors. Some vehicles can store multiple sensor IDs, while others require reprogramming each time.
The cost to replace a TPMS sensor varies:
- Sensor Cost:
$40 to $100 per sensor, depending on the make and model.
- Labor Cost:
$20 to $50 per sensor for installation.
- Programming/Relearning:
Some shops may charge extra for programming the new sensor to your vehicle.
Not all spare tires are equipped with TPMS sensors. If your spare tire does not have a sensor and you install it, the TPMS warning light may remain on until a sensor-equipped tire is reinstalled.
The TREAD Act of 2000 mandated TPMS for all new passenger vehicles sold after September 1, 2007. The system must alert the driver when a tire is 25% or more below the recommended pressure.
Since November 2012, all new passenger vehicles in the European Union must be equipped with TPMS.
Many other countries have adopted similar regulations, making TPMS a global safety standard.
- Sensor Battery Life:
Most TPMS sensors last 5–10 years, depending on usage and environmental conditions.
- Recommended Replacement:
Replace sensors when the battery dies or if the sensor is damaged. Some manufacturers recommend replacing all sensors when replacing all four tires, especially if the sensors are nearing the end of their expected lifespan.
Many manufacturers produce TPMS sensors, including OEM (original equipment manufacturer) and aftermarket options. Popular brands include Schrader, VDO, Huf, Denso, and Continental. Aftermarket sensors may be universal or programmable to fit multiple vehicle models.
- Dashboard Warning Light:
Most vehicles with TPMS have a dedicated warning light on the dashboard, often shaped like a horseshoe with an exclamation point.
- Owner's Manual:
Check the owner's manual for information about your vehicle's TPMS.
- Valve Stem Appearance:
Some TPMS valve stems are metal and look different from standard rubber stems, but this is not always the case.
When rotating tires, the position of each sensor changes. Some vehicles automatically detect the new position, while others require manual relearning or programming. Always follow the manufacturer's recommendations when rotating tires on a vehicle equipped with TPMS.
Run-flat tires are designed to be driven for a limited distance after losing air pressure. TPMS is especially important with run-flats, as the driver may not notice a loss of pressure without a warning system.
- Myth: TPMS replaces the need to check tire pressure manually.
Fact: TPMS is a safety aid, not a substitute for regular manual checks.
- Myth: All TPMS sensors are the same.
Fact: Sensors vary by manufacturer, frequency, and programming requirements.
- Myth: TPMS sensors can be reused indefinitely.
Fact: Batteries inside sensors have a limited lifespan.
TPMS sensors contain electronic components and batteries. When replacing sensors, dispose of old units properly according to local electronic waste regulations.
| TPMS Type | Sensor Location | Key Features |
|---|---|---|
| Direct (Valve) | Inside tire, base of valve stem | Real-time pressure, battery-powered |
| Direct (Banded) | Inside tire, banded to wheel | Real-time pressure, less common |
| Indirect | ABS wheel speed sensors, near brakes | No physical tire sensor, less precise |
Tire pressure sensors are an essential safety feature in modern vehicles. Most direct TPMS sensors are located inside the tire, attached to the valve stem or banded to the wheel. Indirect systems use the ABS sensors near the brake assembly. Understanding the type and location of your vehicle's TPMS sensors allows you to maintain your vehicle more effectively, troubleshoot issues, and know when to seek professional help. Regular maintenance, prompt sensor replacement, and awareness of your system's requirements will ensure optimal performance, safety, and efficiency on the road.
In most cars, the tire pressure sensor is located within the tire, attached to the valve stem or banded to the wheel. Indirect TPMS systems may not have physical sensors inside the tires but use the ABS sensors near the brake assembly.
If you have basic mechanical skills and the right tools, you can replace a sensor yourself. However, proper installation and programming often require specialized equipment, so many people prefer to have a professional mechanic do it.
Direct TPMS will display the actual pressure for each tire and has physical sensors inside the tires. Indirect TPMS does not display individual pressures and relies on the ABS system to infer pressure loss.
A failed sensor will trigger a warning light on your dashboard. The system may not display accurate tire pressure, so you should check your tires manually and replace the faulty sensor as soon as possible.
Most vehicles manufactured after 2007 in the US and after 2012 in Europe are required by law to have TPMS. Older vehicles may not have this system unless retrofitted.
