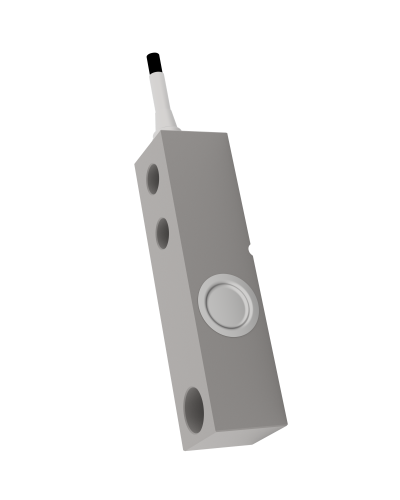

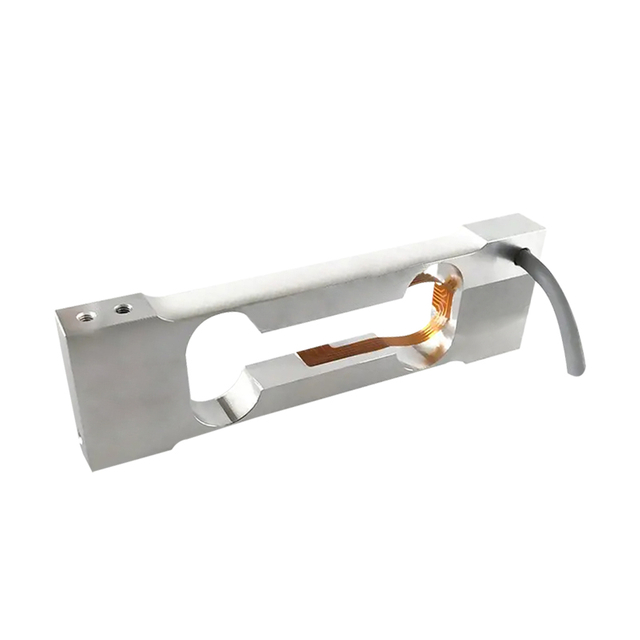

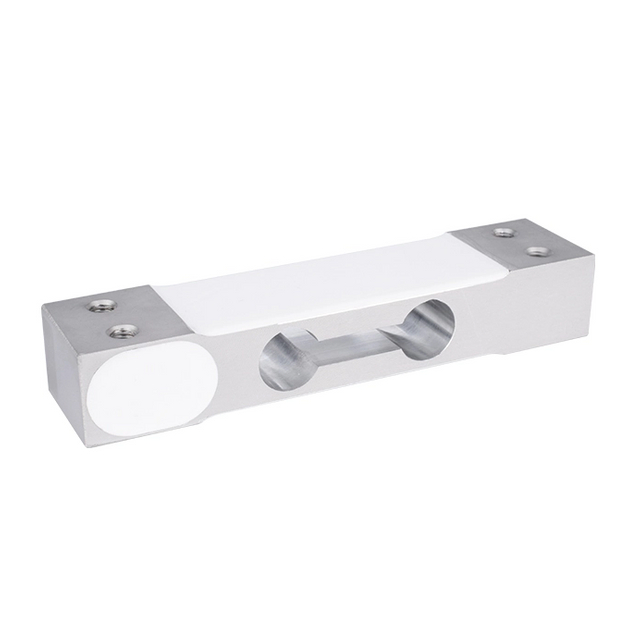

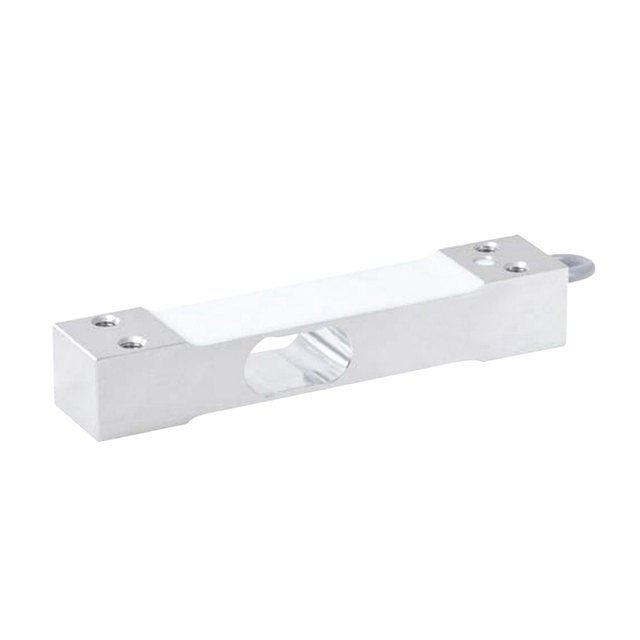

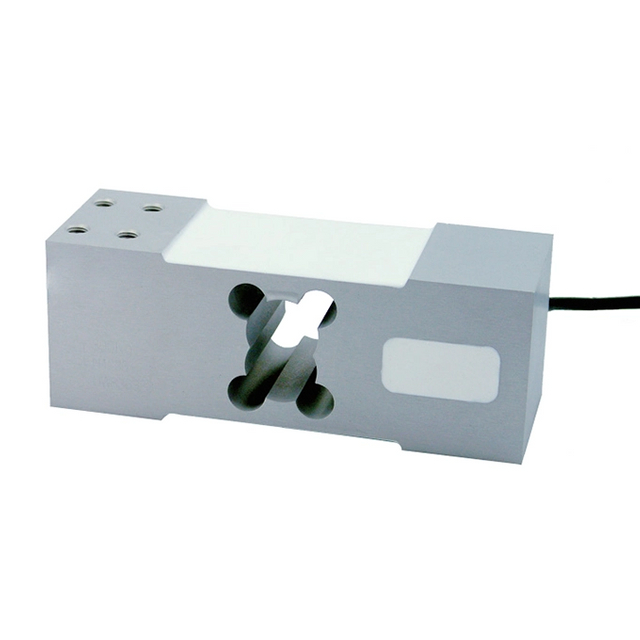

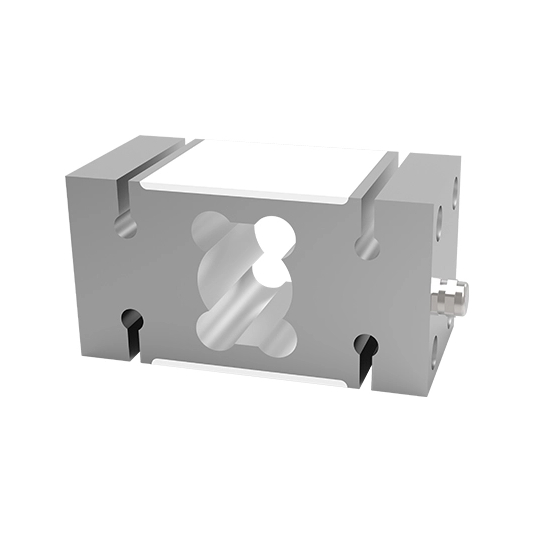

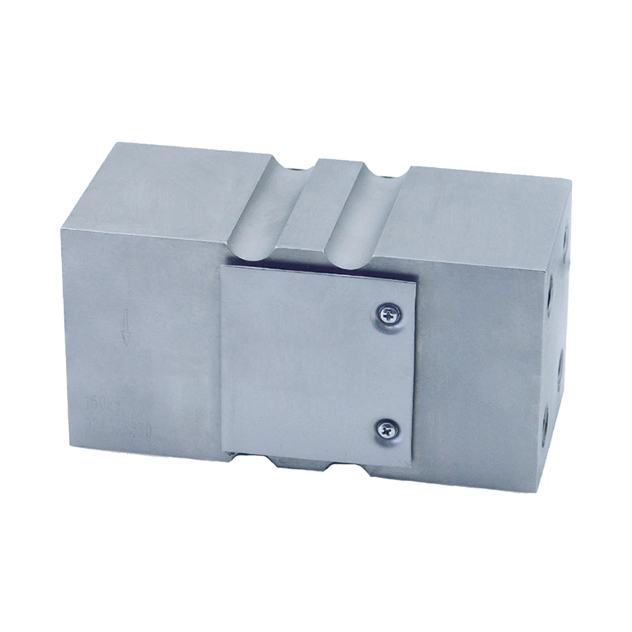

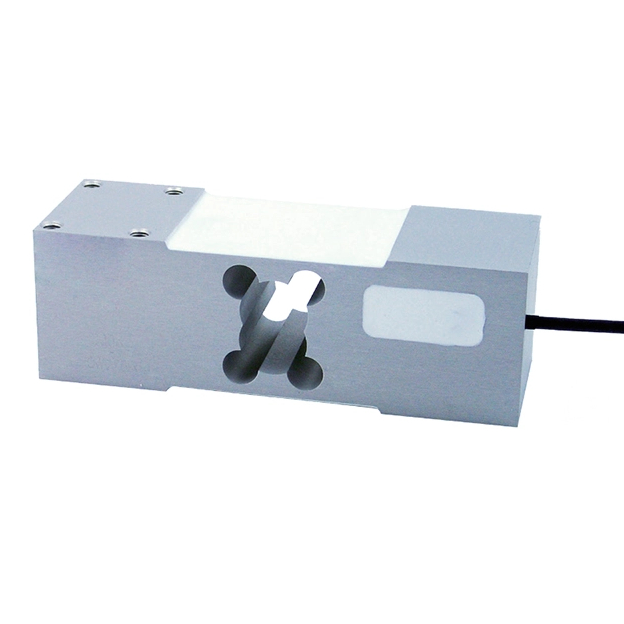

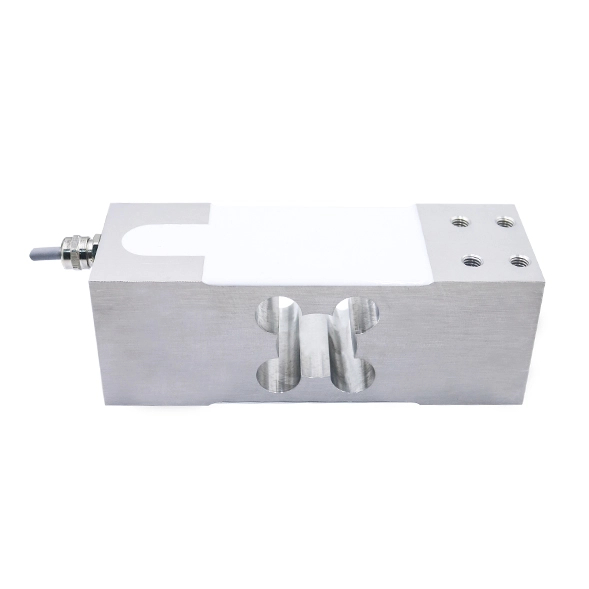

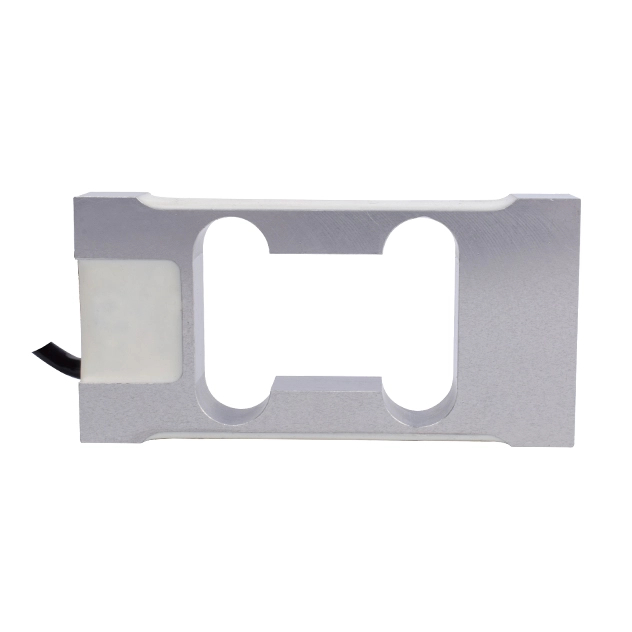

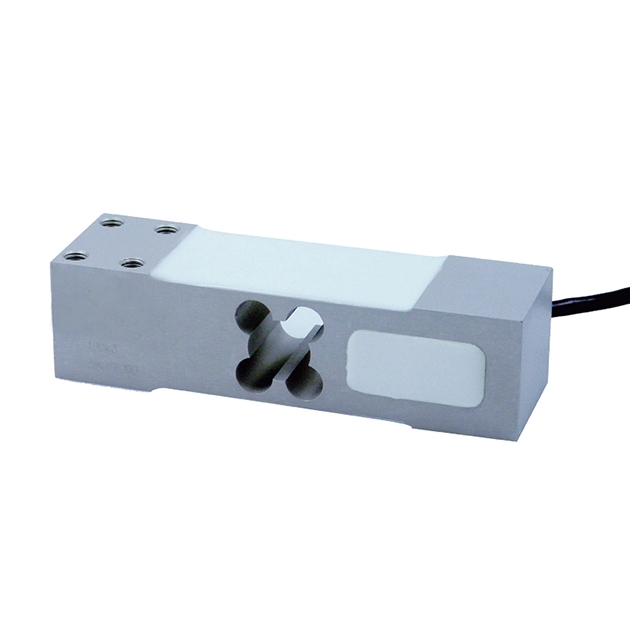

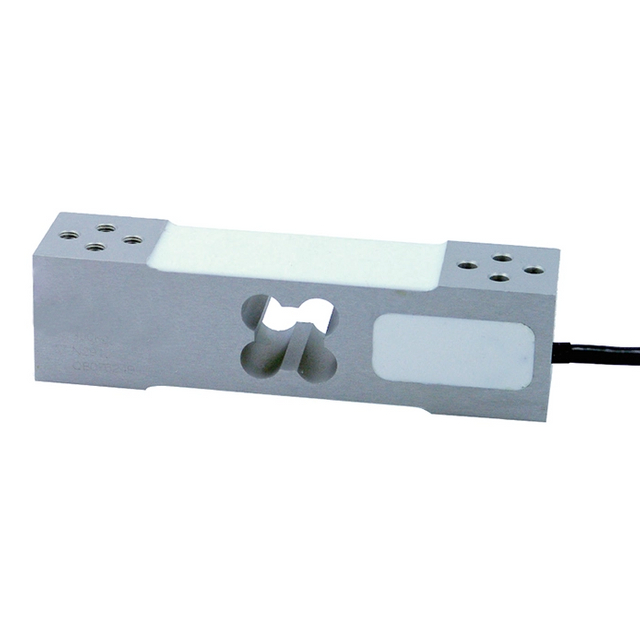

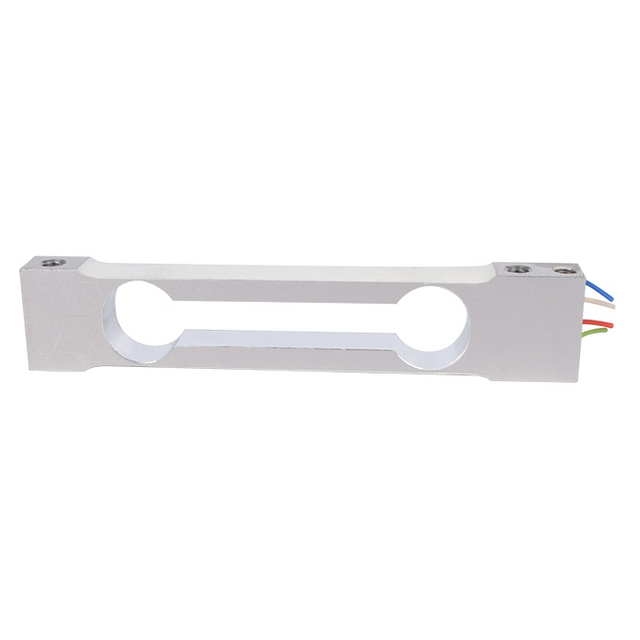

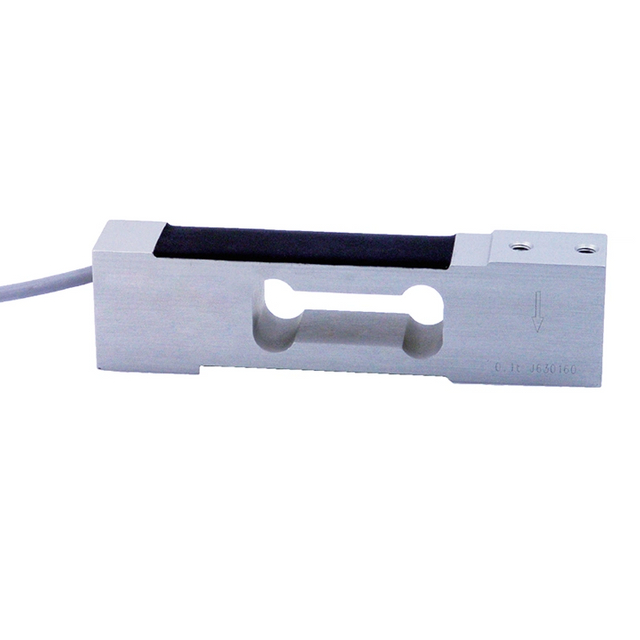

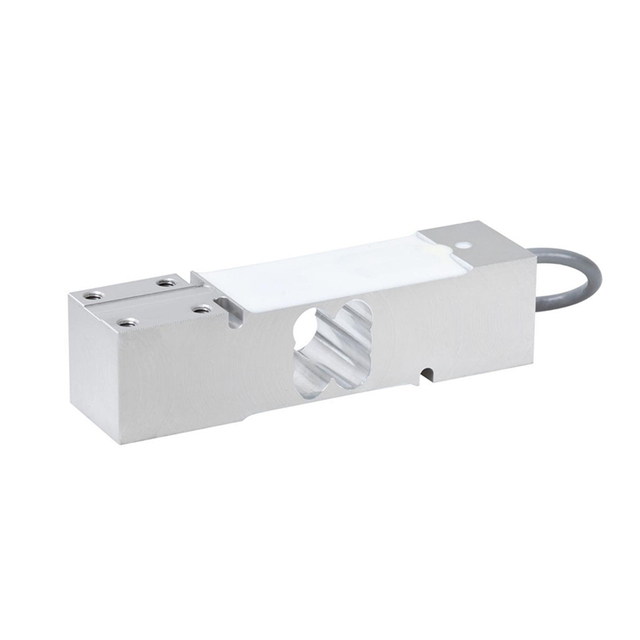

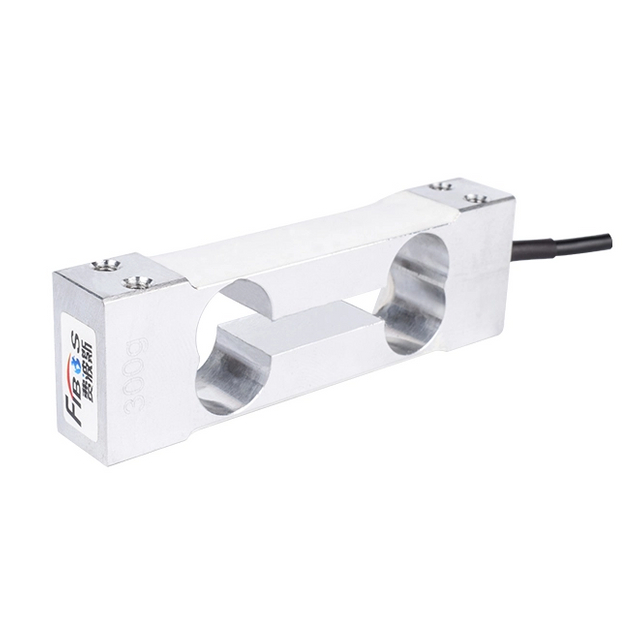

Fibos self-developed and produced load cell adopts the principle of resistance strain type, with high-precision parallel beam/shear beam strain structure, the measurement range covers 20g~10t, and the measurement accuracy can reach C3 grade; Fibos self-developed and produced load cell adopts the principle of resistance strain type, with high-precision parallel beam/shear beam strain structure, the measurement range covers 20g~10t, and the measurement accuracy can reach C3 grade; Both the top and bottom faces contain threaded fixing holes, allowing the transducer to be used both for weighing and for measuring tensile forces; The special grinding process of the corners allows the sensor to be mounted without large off-loading errors, even when mounted on a weighing pan; The main body of the sensor is usually made of high-quality aviation aluminium, high-strength alloy steel or high-strength stainless steel, the material has high yield strength, good anti-interference and safety performance, the response frequency is higher than 1KHZ, the service life can be up to more than 3 million times, the safety overload of 150%, the limit of the overload can be up to 200%; the level of protection can be up to IP65~68. The sensor can work normally between -20~80℃; Also can be customised high and low temperature version, limit temperature range -40 ~ 200℃; sensor output signal cable using high-quality drag chain wire, bending service life is high; the company's production of tension force transducer is now widely used in a variety of weighing industry.
The working principle of a weighing sensor mainly utilizes the strain effect caused by the deformation of elastic materials to convert weight into electrical signals. A weighing sensor is a device that converts a mass signal into a measurable electrical signal output. Its core components are elastic materials and strain gauges. When an external force acts on an elastic material, it undergoes deformation, which is proportional to the force applied. When an object is placed on the sensor platform, external force is transmitted through the platform to the elastic element, causing it to deform. The strain effect caused by the deformation of the elastic element is detected by the Wheatstone bridge connected to the elastic element, which can convert the resistance change into voltage output. The output voltage is proportional to the load capacity, and after calibration, the weighing sensor has the characteristics of high accuracy, high sensitivity, and fast response. Alternatively, the weight of an object can be measured by utilizing the specific force magnitude relationship between gravity and support when the object is located at the center of the sensor. These principles embody the perfect combination of mechanical and electrical components, enabling weighing sensors to be widely used in various counting and weighing situations.
Main component of load cell&force sensor
Strain gauge
Good heat resistance, small creep, small thermal hysteresis, good long-term stability
Elastomer for sensors
The sensor uses 17-4PH, 15-5PH, LC4 and other industrial sensor special stainless steel，alloy aluminum
Glue
Jelly glue, Waterproof glue
Cable
High temperature wire, Normal temperature wire
Technical Support and Customization Capabilities
FIBOS has over 15 years of experienced R&D engineers and modern standard factory.
Our engineers can deeply understand your project requirements and product specifications and provide corresponding technical solutions.
Products include weighing, force measurement, torque, piezoelectric sensors, etc. More than 80% of the projects we undertake are customized. Our customization services include size, internal structure, technical parameters and other customized accessories.
Our engineering team organizes training courses regularly to keep the technical team at the forefront of the industry and proficient in dealing with various technical challenges.
We provide detailed technical documents and information, such as specifications, force installation drawings, 3D drawings, etc.
Precision Processes and Continuously Optimized Production
You need more than just a precision force sensor, you need a supplier with 8 years of experience in the field to build your brand and increase your profits!
Production on Demand Order FIBOS Sensor focuses on customer demands and flexibly adjusts the production process and schedule to ensure the timely delivery of high-quality customized products. Regardless of the bigger or smaller order, we respond quickly and provide solutions that meet our customers' requirements.
Core Parts Manufacturing and Assembly We have advanced force sensor processing equipment and skilled technical workers, who can accurately process all kinds of high-precision force sensor, in strict accordance with the assembly process for sensor assembly, to ensure stable and reliable product quality, and to provide customers with excellent performance and experience.
Force Sensor Production and Control Perform organization and a series of inspections on force sensor components such as strain gauges, resistor bridge, connector, and end cables. Each force sensor is rigorously tested and evaluated to ensure its quality is up to industry-leading levels, enhancing product performance and reliability.
Automated Manufacturing Capacity and Continuous Optimization
We continue to invest in research and development and the introduction of advanced automated production equipment. With an automation rate of 60%, and continuous optimization of production processes, to ensure that we are always at the forefront of the industry and meet the changing needs of our customers.
Quality Control and Reliability
FIBOS Sensor is equipped with various precision machining and quality testing equipment. We have established a comprehensive inspection process, covering material selection, production process monitoring, product testing, and other aspects. We have also established a perfect after-sales service system to respond to customer inquiries and needs promptly, rather than go away after delivery.
For over a decade, FIBOS has been engaged in manufacturing micro force sensor and load cells. We are proud to support all of our customers, regardless of their size.
Load cell capacity range from 100g to 1000ton Reduction delivery time by 40%.
Fibos specializes in research, development and production of weighing force sensor. SERVICE & CALIBRATION Calibration service is NIST and in compliance with ISO 17025.
